Seat Belt Warning System: Wiring Diagram

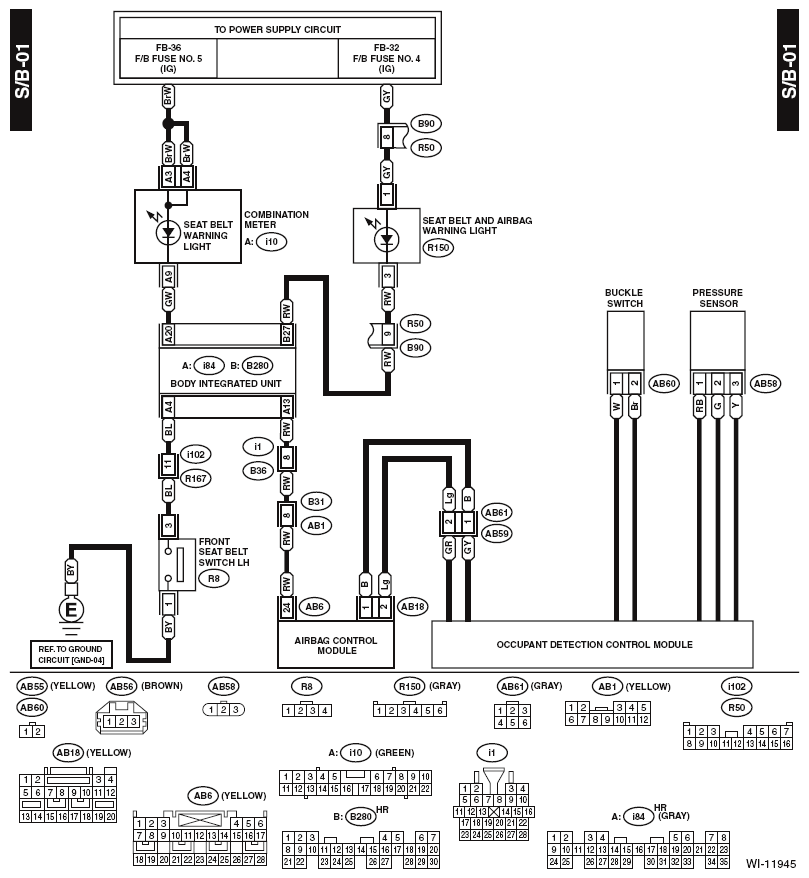

Fig 1: Seat Belt Warning System Wiring Diagram

G11894542

Courtesy of SUBARU OF AMERICA, INC.
