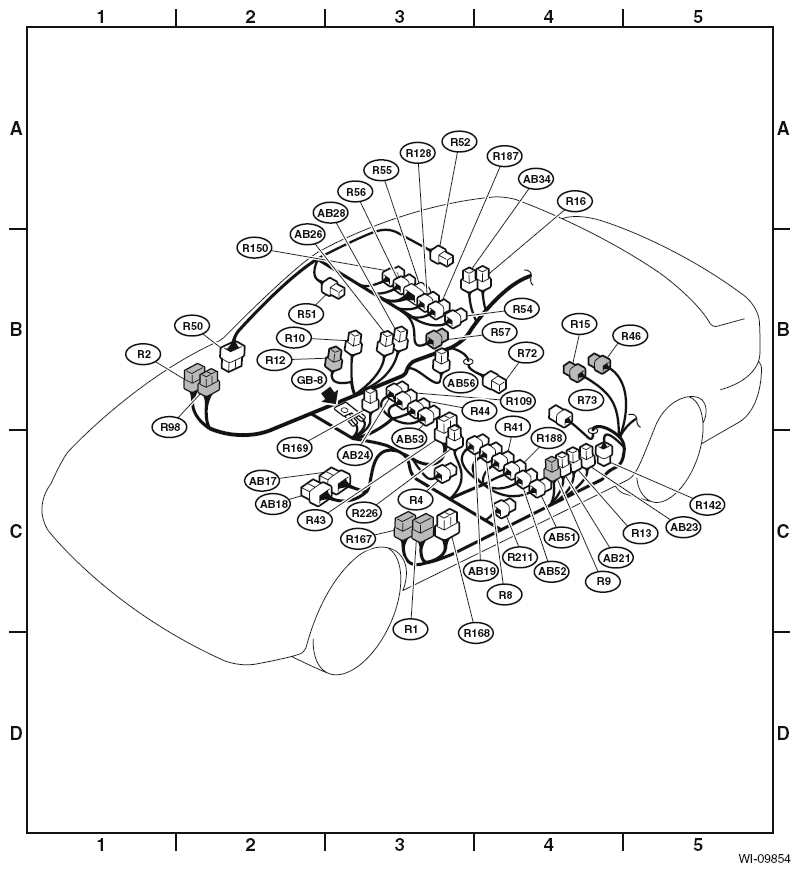

| R1 |
20 |
|
C-3 |
B97 |
Bulkhead wiring harness |
| R2 |
16 |
B-1 |
B98 |
| R4 |
1 |
Black |
C-3 |
|
Parking brake switch |
| R8 |
4 |
|
C-4 |
|
Front seat belt switch LH |
| R9 |
3 |
|
C-4 |
|
Front door switch LH |
| R10 |
8 |
|
B-3 |
D22 |
Rear door cord RH |
| R12 |
3 |
|
B-3 |
|
Front door switch RH |
| R13 |
8 |
|
C-4 |
D28 |
Rear door cord LH |
| R15 |
8 |
|
B-4 |
R213 |
Fuel cord 1 |
| R16 |
3 |
|
B-4 |
|
Rear door switch RH |
| R41 |
4 |
|
C-4 |
|
Seat heater LH |
| R43 |
20 |
|
C-3 |
|
Seat heater switch |
| R44 |
4 |
|
C-2 |
|
Seat heater RH |
| R46 |
6 |
|
B-4 |
R67 |
Fuel cord 2 |
| R50 |
16 |
|
B-2 |
B90 |
Bulkhead wiring harness |
| R51 |
2 |
Black |
B-3 |
|
Vanity mirror illumination RH |
| R52 |
3 |
|
B-3 |
|
Room light |
| R54 |
2 |
Black |
B-4 |
|
Vanity mirror illumination LH (Without home link) |
| |
3 |
|
|
|
Vanity mirror illumination LH (With home link) |
| R55 |
10 |
Gray |
A-3 |
|
Sunroof control unit |
| R56 |
2 |
|
A-3 |
|
Spot map light |
| R57 |
3 |
|
B-3 |
|
Rearview mirror |
| R72 |
2 |
|
B-4 |
|
Rear ABS wheel speed sensor RH |
| R73 |
2 |
|
B-4 |
|
Rear ABS wheel speed sensor LH |
| R98 |
18 |
|
B-2 |
i53 |
Instrument panel wiring harness RH |
| R109 |
2 |
Black |
B-4 |
|
Power seat RH |
| R128 |
5 |
|
A-3 |
|
Open/Close switch |
| R142 |
2 |
|
C-5 |
|
Fuel pump condenser (Without fuel pump controller unit) |
| R150 |
6 |
Gray |
B-2 |
|
Seatbelt and airbag warning light |
| R167 |
16 |
|
C-3 |
i102 |
Instrument panel wiring harness LH |
| R168 |
20 |
|
C-3 |
|
Fuse & relay box (F/B) |
| R169 |
8 |
|
B-3 |
|
Impact sensor |
| R187 |
5 |
Black |
B-3 |
|
Tilt switch |
| R188 |
2 |
Black |
C-4 |
|
Power seat LH |
| R211 |
12 |
|
C-4 |
|
TPM control module |
| R226 |
10 |
|
C-4 |
|
Navigation module |
| R242 |
5 |
|
A-4 |
|
Sunroof switch 2 |
| AB17 |
20 |
Yellow |
C-2 |
|
Airbag control module RH |
| AB18 |
20 |
Yellow |
C-2 |
|
Airbag control module LH |
| AB19 |
2 |
Yellow |
C-4 |
AB20 |
Inflator (Side) LH |
| AB21 |
2 |
|
C-4 |
|
Pretensioner LH |
| AB23 |
4 |
Yellow |
C-5 |
|
Side airbag sensor LH |
| AB24 |
2 |
Yellow |
B-3 |
AB25 |
Inflator (Side) RH |
| AB26 |
2 |
Black |
B-2 |
|
Pretensioner RH |
| AB28 |
4 |
Yellow |
B-3 |
|
Side airbag sensor RH |
| AB34 |
4 |
Yellow |
B-4 |
|
Curtain airbag sensor RH |
| AB51 |
2 |
Yellow |
C-4 |
|
Buckle switch |
| AB52 |
2 |
Yellow |
C-4 |
|
Seat position |
| AB53 |
6 |
Gray |
C-3 |
|
Occupant detection control module |
| AB56 |
3 |
Brown |
B-3 |
|
Belt tensioner sensor |
