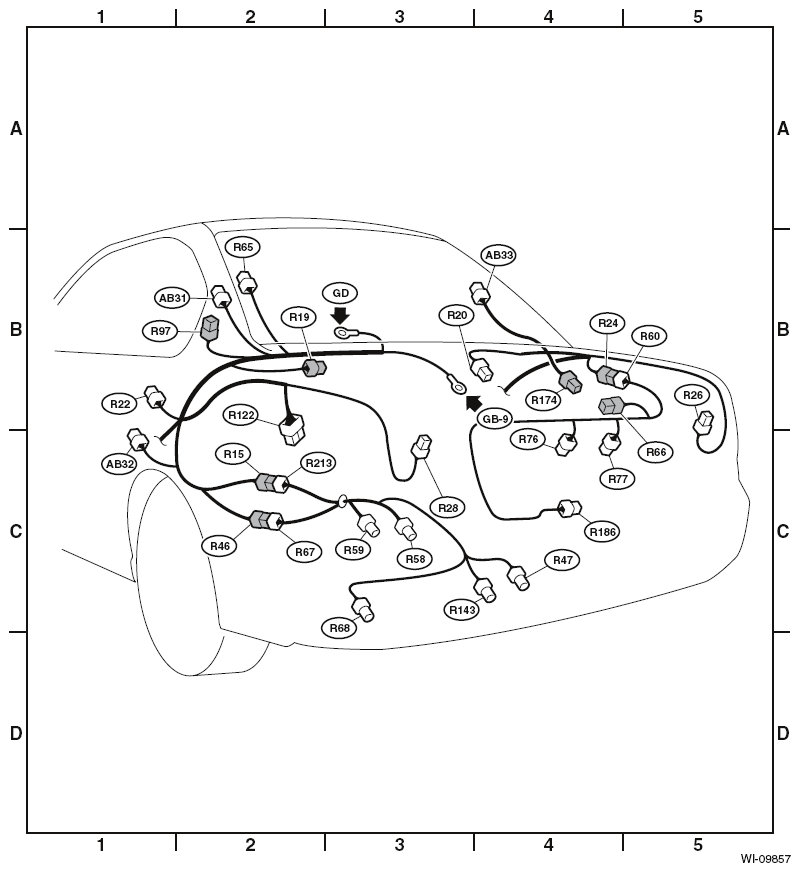

| R15 |
8 |
|
C-2 |
|
Fuel cord 1 |
| R19 |
2 |
|
B-2 |
|
High-mounted stop light |
| R20 |
2 |
|
B-4 |
|
Trunk room light |
| R22 |
3 |
|
B-1 |
|
Rear door switch LH |
| R24 |
8 |
|
B-4 |
R60 |
Trunk lid cord |
| R26 |
6 |
|
B-5 |
|
Rear combination light RH |
| R28 |
6 |
|
C-3 |
|
Rear combination light LH |
| R46 |
6 |
|
C-2 |
R67 |
Fuel cord 2 |
| R47 |
3 |
Black |
C-4 |
|
Fuel tank pressure sensor |
| R58 |
6 |
Gray |
C-3 |
|
Fuel pump assembly |
| R59 |
2 |
|
C-3 |
|
Fuel gauge sub unit |
| R60 |
8 |
|
B-4 |
R24 |
Rear wiring harness |
| R65 |
1 |
|
B-2 |
|
Rear defogger |
| R66 |
2 |
|
B-4 |
|
High-mounted stop light (Rear spoiler) |
| R67 |
6 |
|
C-2 |
R46 |
Rear wiring harness |
| R68 |
2 |
Dark gray |
C-3 |
|
Pressure control solenoid valve |
| R76 |
2 |
|
C-4 |
|
License plate light LH |
| R77 |
2 |
|
C-4 |
|
License plate light RH |
| R97 |
1 |
|
B-2 |
|
Radio antenna |
| R122 |
10 |
|
C-2 |
|
Fuel pump control unit |
| R143 |
2 |
Gray |
C-4 |
|
Drain valve |
| R174 |
1 |
|
B-4 |
|
Noise filter |
| R186 |
3 |
|
C-4 |
|
Trunk lid actuator |
| R213 |
8 |
|
C-2 |
|
Rear wiring harness |
| AB31 |
2 |
Yellow |
B-2 |
AB39 |
Inflator (Curtain) LH |
| AB32 |
4 |
Yellow |
C-1 |
|
Curtain airbag sensor LH |
| AB33 |
2 |
Yellow |
B-4 |
AB40 |
Inflator (Curtain) RH |
