Rear Wiring Harness and Rear Gate Cord: Location

Connector				Connecting to
No.	Pole	Color	Area	No.	Description
R15	8	(1)	C-1	R213	Fuel cord 1
R22	3	(1)	C-1		Rear door switch LH
R26	4	(1)	C-4		Rear combination light RH
R28	4	(1)	C-3		Rear combination light LH
R32	2	(1)	C-2		Luggage room power supply
R37	3	(1)	C-4	D33	Rear gate cord
R38	8	(1)	C-5	D34
R39	10	(1)	C-5	D35
R46	6	(1)	D-1	R67	Fuel cord 2
R47	3	Black	C-4		Fuel tank pressure sensor
R58	6	Gray	D-2		Fuel pump assembly
R59	2	(1)	D-2		Fuel gauge sub unit
R67	6	(1)	D-2	R46	Rear wiring harness
R68	2	Dark gray	D-3		Pressure control solenoid valve
R79	6	(1)	B-2		Trailer connector
R97	1	(1)	B-2		Antenna amplifier
R117	2	(1)	C-3		Woofer
R122	10	Black	C-2		Fuel pump control unit
R143	2	Gray	C-4		Fuel tank sensor control valve
R213	8	(1)	C-1 R15		Rear wiring harness
D33	3	(1)	C-4	R37	Rear wiring harness
D34	8	(1)	C-4	R38
D35	10	(1)	C-5	R39
D37	3	(1)	B-3		Luggage room light
D39	2	(1)	B-3		High-mounted stop light
D43	4	(1)	B-4		Rear wiper motor
D44	2	(1)	A-5		License plate light
D46	2	Black	A-4		Rear gate latch switch
D47	2	Gray	A-5		Rear gate lock actuator
D48	1	Black	B-3		Rear defogger
D87	2	(1)	A-5		Back-up light RH
D89	1	(1)	B-4		Noise filter
D91	2	(1)	A-4		Back-up light LH
AB31	2	Yellow	B-1	AB39	Inflator (Curtain) LH
AB32	4	Yellow	C-1		Curtain airbag sensor LH
AB33	2	Yellow	C-3	AB40	Inflator (Curtain) RH
(1) White or natural color

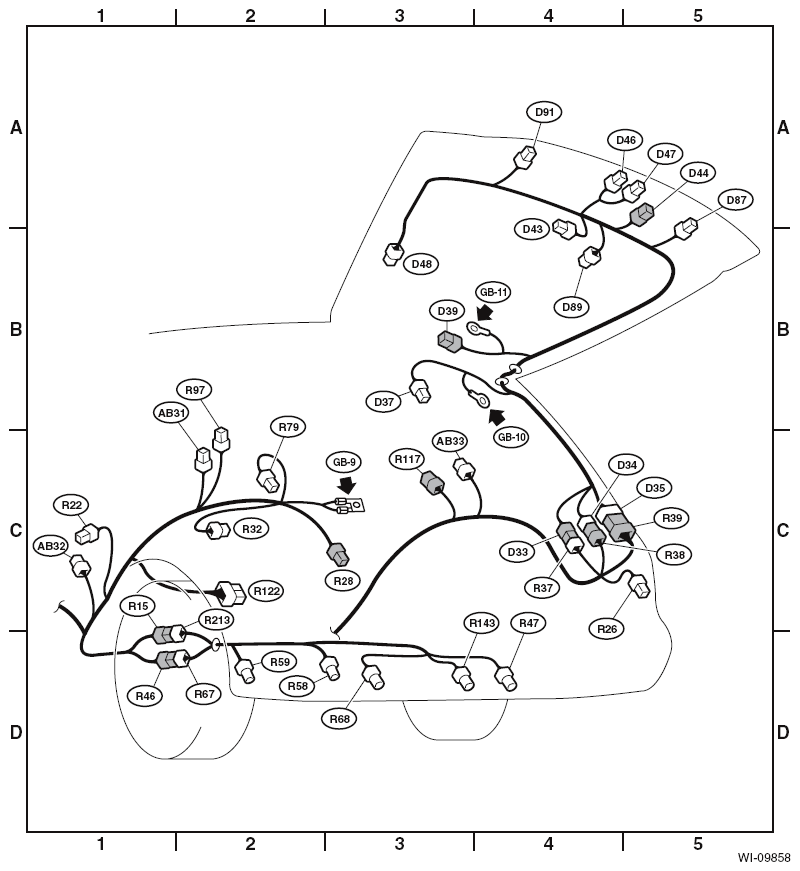

Fig 1: Rear Wiring Harness Connectors And Rear Gate Cord Connectors

Courtesy of SUBARU OF AMERICA, INC.
