Rear Accessory Power Supply Socket System: Wiring Diagram

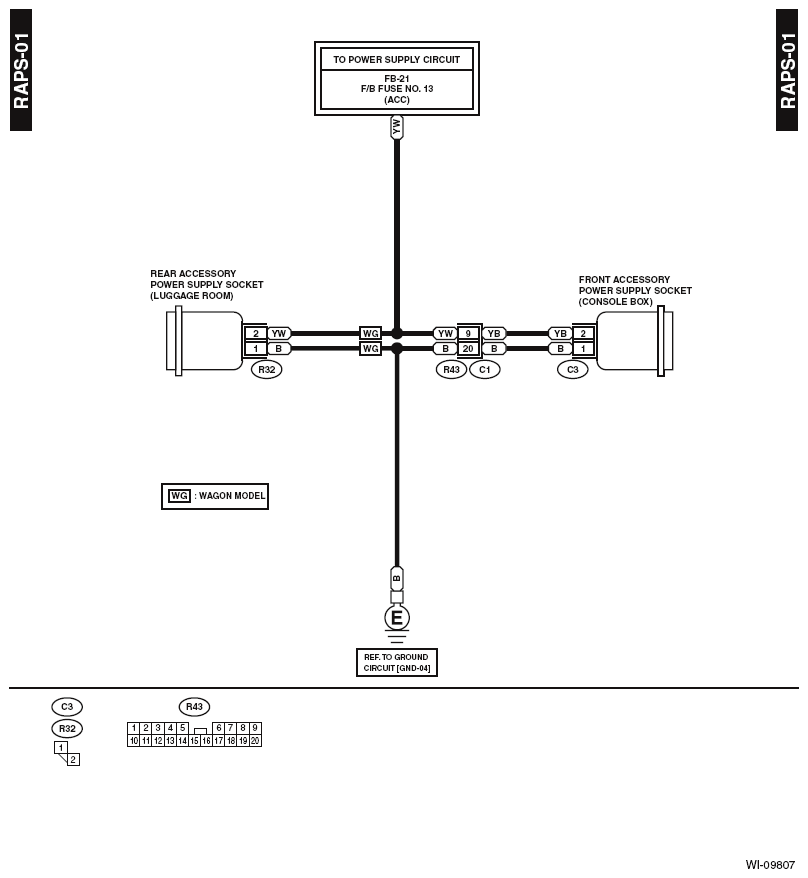

Fig 1: Rear Accessory Power Supply Socket System Wiring Diagram

G11894568

Courtesy of SUBARU OF AMERICA, INC.
