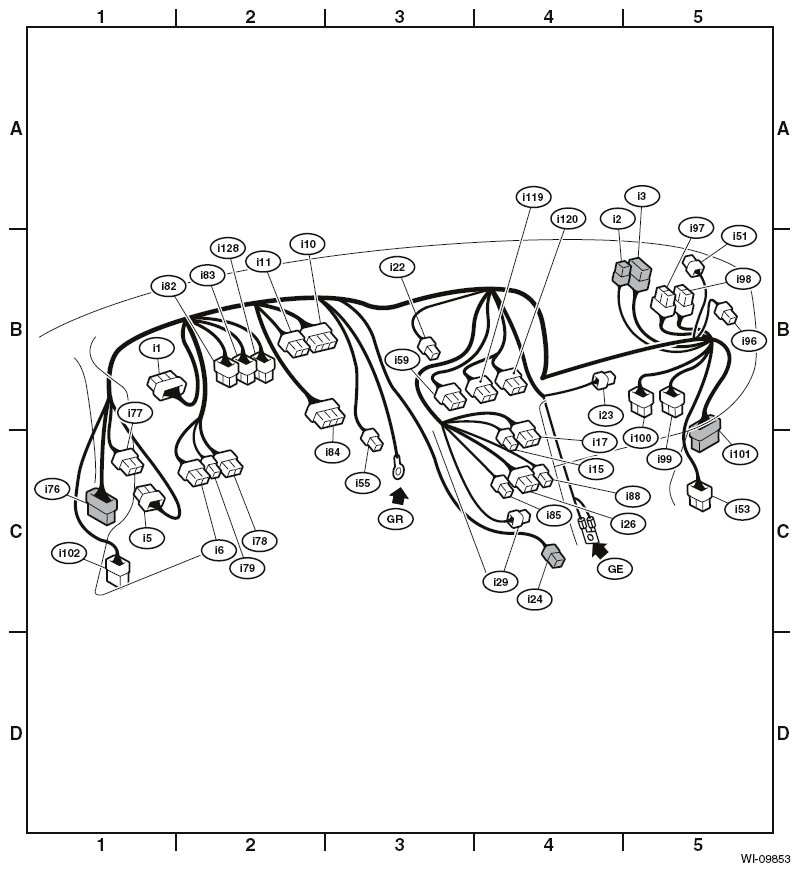

| i1 |
28 |
|
B-1 |
B36 |
Bulkhead wiring harness |
| i2 |
8 |
|
B-4 |
B37 |
| i3 |
20 |
|
B-5 |
B38 |
| i5 |
20 |
|
C-1 |
|
Fuse & relay box (F/B) |
| i6 |
16 |
|
C-2 |
|
Mirror control switch |
| i10 |
22 |
Green |
B-2 |
|
Combination meter |
| i11 |
14 |
Green |
B-2 |
|
| i15 |
6 |
|
C-4 |
|
A/C control panel (Manual A/C) |
| i17 |
16 |
Black |
C-4 |
|
| i22 |
4 |
|
B-3 |
|
Hazard switch |
| i23 |
2 |
|
B-4 |
|
Glove box illumination |
| i24 |
6 |
|
C-4 |
|
Front accessory power supply socket |
| i26 |
14 |
|
C-4 |
|
Audio |
| i29 |
1 |
Black |
C-4 |
|
Audio bracket earth |
| i51 |
2 |
|
B-5 |
|
Sunload sensor |
| i53 |
18 |
|
C-5 |
R98 |
Rear wiring harness |
| i55 |
2 |
|
C-3 |
|
In-vehicle sensor |
| i59 |
10 |
|
B-3 |
|
Clock |
| i76 |
25 |
|
C-1 |
D83 |
Front door cord LH |
| i77 |
12 |
Black |
B-1 |
|
Joint connector |
| i78 |
15 |
|
C-2 |
|
Push switch |
| i79 |
6 |
|
C-2 |
|
Illumination control module |
| i82 |
12 |
|
B-2 |
|
Joint connector (Illumination and backup) |
| i83 |
12 |
|
B-2 |
|
| i84 |
35 |
Gray |
C-3 |
|
Body integrated unit |
| i85 |
8 |
|
C-4 |
|
Audio |
| i88 |
8 |
|
C-4 |
|
A/C control pane (Auto A/C) |
| i96 |
8 |
|
B-5 |
|
Keyless entry control module |
| i97 |
12 |
|
B-5 |
|
Joint ground connector |
| i98 |
12 |
|
B-5 |
|
| i99 |
12 |
Black |
B-5 |
|
| i100 |
12 |
Black |
B-5 |
|
| i101 |
25 |
|
C-5 |
D84 |
Front door cord RH |
| i102 |
16 |
|
C-1 |
R167 |
Rear wiring harness |
| i119 |
16 |
|
B-4 |
|
TV monitor |
| i120 |
20 |
|
B-4 |
|
| i128 |
12 |
Blue |
B-2 |
|
CAN joint connector |
