Horn System: Wiring Diagram

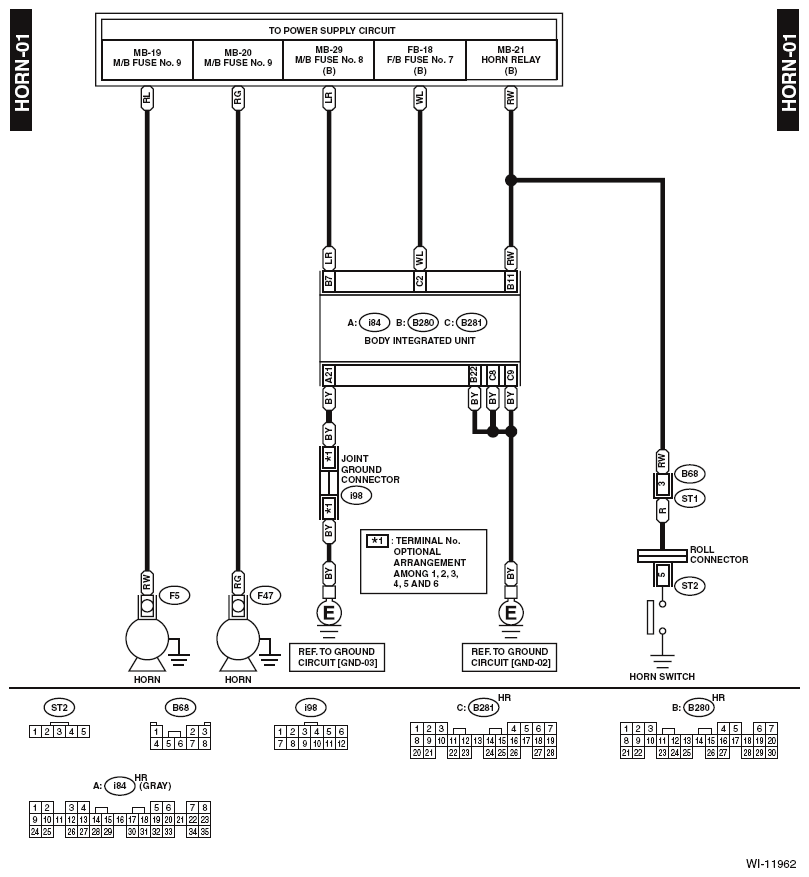

Fig 1: Horn System Wiring Diagram

G11894572

Courtesy of SUBARU OF AMERICA, INC.
