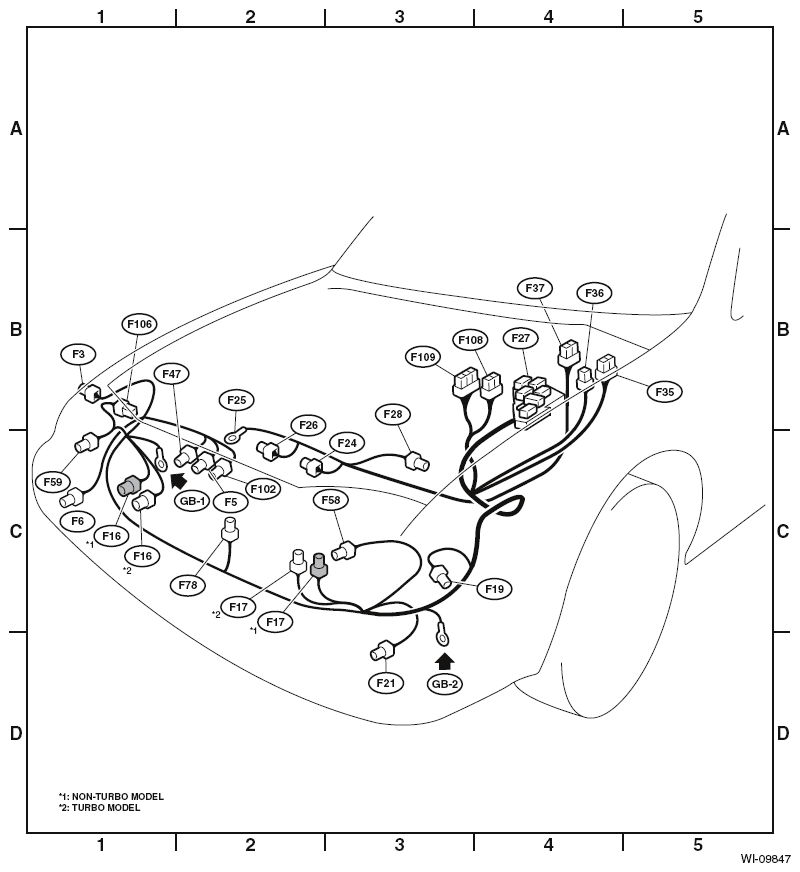

| F3 |
3 |
|
B-1 |
|
Front clearance and front turn signal light RH |
| F5 |
1 |
|
C-2 |
|
Horn (HI) |
| F6 |
2 |
|
C-1 |
|
Front fog light RH |
| F16 |
2 |
Gray |
C-1 |
|
Sub fan motor (H4 Turbo model) |
| |
|
Black |
|
|
Sub fan motor (H4 Non-turbo model) |
| F17 |
2 |
Gray |
C-2 |
|
Main fan motor (H4 Turbo model) |
| |
|
Black |
|
|
Main fan motor (H4 Non-turbo model) |
| F19 |
3 |
|
C-4 |
|
Front clearance and front turn signal light LH |
| F21 |
2 |
|
D-3 |
|
Front fog light LH |
| F24 |
2 |
Gray |
C-2 |
|
A/C compressor (H4 Non-turbo model) |
| Black |
A/C compressor (H6 model) |
| F25 |
1 |
|
B-2 |
|
Generator terminal B |
| F26 |
3 |
|
C-2 |
|
Generator |
| F27 |
31 |
|
B-4 |
|
Relay holder |
| F28 |
2 |
Gray |
C-3 |
|
A/C lock sensor |
| F35 |
12 |
Blue |
B-5 |
|
Main fuse box (M/B) |
| F36 |
7 |
|
B-4 |
|
| F37 |
20 |
|
B-4 |
|
| F47 |
1 |
|
B-2 |
|
Horn (LO) |
| F58 |
3 |
|
C-3 |
|
Headlight and front clearance light LH |
| F59 |
3 |
|
C-1 |
|
Headlight and front clearance light RH |
| F78 |
2 |
Black |
C-2 |
|
Ambient sensor |
| F102 |
2 |
|
C-2 |
|
Keyless buzzer |
| F106 |
3 |
|
B-1 |
|
PWM controller (H6 model) |
| F108 |
18 |
|
B-4 |
B361 |
Through joint connector |
| F109 |
24 |
|
B-3 |
B360 |
