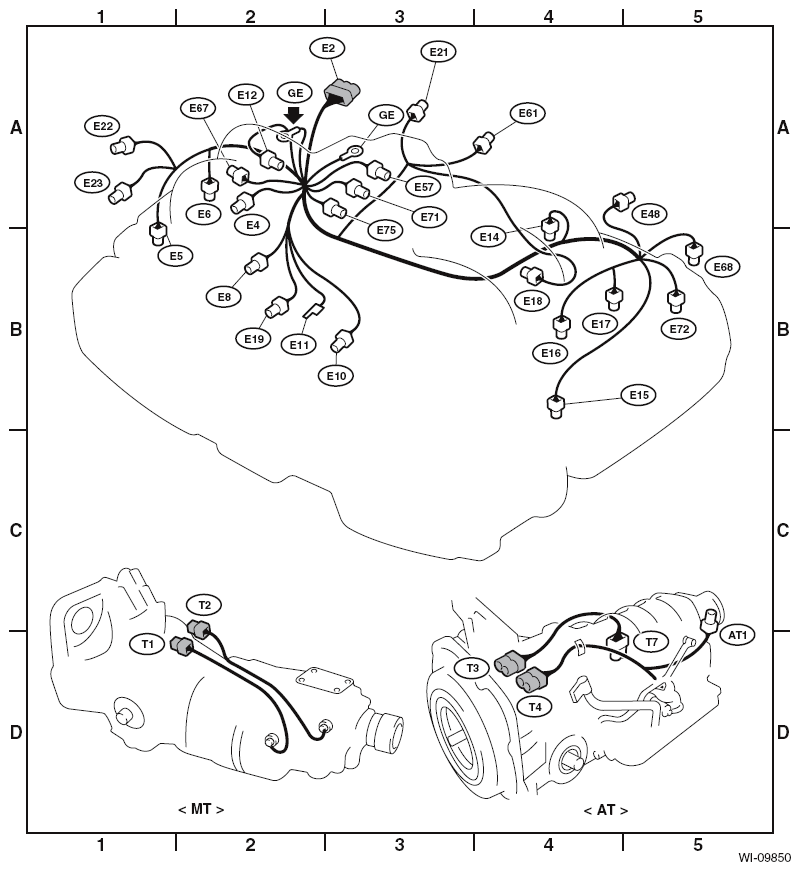

| E2 |
54 |
Black |
A-2 |
B21 |
Bulkhead wiring harness |
| E4 |
2 |
Black |
A-2 |
|
CPC Solenoid |
| E5 |
2 |
Light gray |
B-1 |
|
Fuel injector No. 1 |
| E6 |
2 |
Light gray |
A-2 |
|
Fuel injector No. 3 |
| E8 |
2 |
Black |
B-2 |
|
Engine coolant temperature sensor |
| E10 |
2 |
Light gray |
B-3 |
|
Crankshaft position sensor |
| E11 |
1 |
|
B-2 |
|
Oil pressure switch |
| E12 |
4 |
Dark gray |
A-2 |
|
Ignition coil and ignitor assembly |
| E14 |
2 |
Gray |
B-4 |
|
Knock sensor 1 |
| E15 |
2 |
Gray |
B-4 |
|
Camshaft position sensor |
| E16 |
2 |
Light gray |
B-4 |
|
Fuel injector No. 2 |
| E17 |
2 |
Light gray |
B-4 |
|
Fuel injector No. 4 |
| E18 |
6 |
Dark gray |
B-4 |
|
EGR solenoid valve |
| E19 |
1 |
|
B-2 |
|
Power steering oil pressure switch |
| E21 |
3 |
Black |
A-3 |
|
Manifold absolute pressure sensor |
| E22 |
6 |
Dark gray |
A-1 |
|
Front oxygen (A/F) sensor |
| E23 |
4 |
Dark gray |
A-1 |
|
Rear oxygen sensor |
| E48 |
2 |
Blue |
A-4 |
|
Knock sensor 2 |
| E57 |
6 |
Black |
A-3 |
|
Electronic throttle control |
| E61 |
2 |
Dark gray |
A-4 |
|
Blow-by hose diagnosis (PCV) |
| E67 |
2 |
Blue |
A-2 |
|
Intake VVL solenoid RH |
| E68 |
2 |
Blue |
B-5 |
|
Intake VVL solenoid LH |
| E71 |
1 |
Gray |
A-3 |
|
Variable valve lift diagnosis oil pressure switch RH |
| E72 |
1 |
Gray |
B-5 |
|
Variable valve lift diagnosis oil pressure switch LH |
| E75 |
2 |
Black |
B-3 |
|
Oil temperature sensor |
