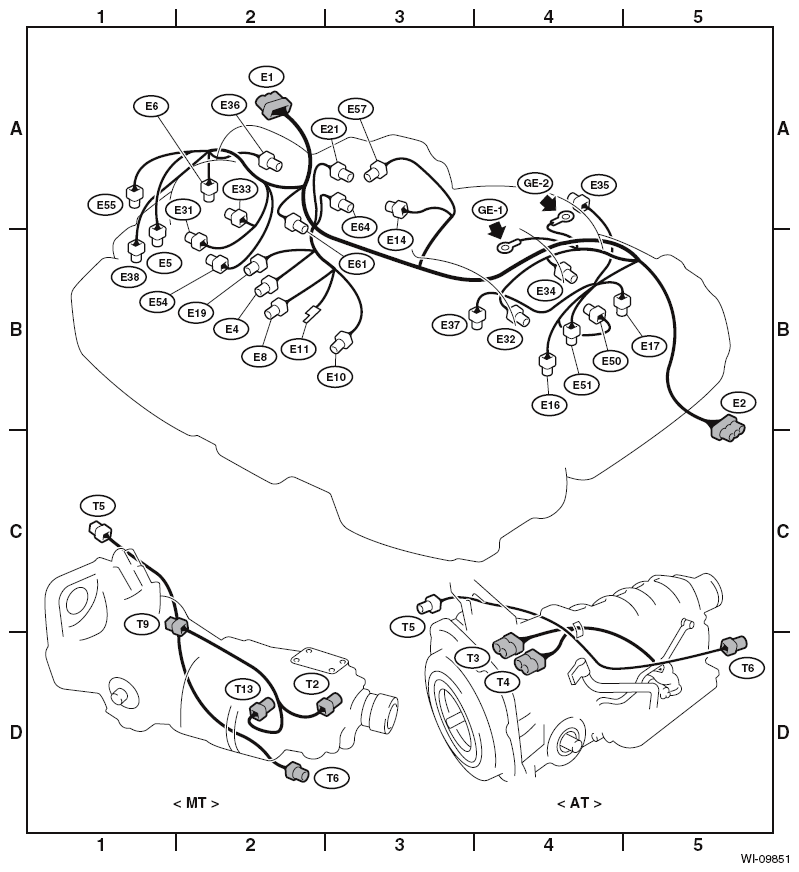

| E1 |
16 |
Brown |
A-2 |
B20 |
Bulkhead wiring harness |
| E2 |
54 |
Black |
B-5 |
B21 |
| E4 |
2 |
Black |
B-2 |
|
CPC Solenoid |
| E5 |
2 |
Light gray |
B-1 |
|
Fuel injector No. 1 |
| E6 |
2 |
Black |
A-1 |
|
Fuel injector No. 3 |
| E8 |
2 |
Black |
B-2 |
|
Engine coolant temperature sensor |
| E10 |
2 |
Light gray |
B-3 |
|
Crankshaft position sensor |
| E11 |
1 |
|
B-2 |
|
Oil pressure switch |
| E14 |
2 |
Brown |
B-3 |
|
Knock sensor |
| E16 |
2 |
Light gray |
B-4 |
|
Fuel injector No. 2 |
| E17 |
2 |
Black |
B-5 |
|
Fuel injector No. 4 |
| E19 |
1 |
|
B-2 |
|
Power steering oil pressure switch |
| E21 |
3 |
Black |
A-3 |
|
Manifold absolute pressure sensor |
| E31 |
3 |
|
A-2 |
|
Ignition coil No. 1 |
| E32 |
3 |
|
B-4 |
|
Ignition coil No. 2 |
| E33 |
3 |
Black |
A-2 |
|
Ignition coil No. 3 |
| E34 |
3 |
Black |
B-4 |
|
Ignition coil No. 4 |
| E35 |
3 |
Light gray |
A-4 |
|
Intake camshaft position sensor LH |
| E36 |
3 |
Light gray |
A-2 |
|
Intake camshaft position sensor RH |
| E37 |
2 |
Blue |
B-3 |
|
Intake oil flow control solenoid valve LH |
| E38 |
2 |
Blue |
B-1 |
|
Intake oil flow control solenoid valve RH |
| E50 |
3 |
Black |
B-4 |
|
TGV angle sensor LH |
| E51 |
2 |
Black |
B-4 |
|
TGV LH |
| E54 |
3 |
Black |
A-2 |
|
TGV angle sensor RH |
| E55 |
2 |
Black |
A-1 |
|
TGV RH |
| E61 |
2 |
Gray |
B-3 |
|
Blow-by hose diagnosis (PCV) |
| E57 |
6 |
Black |
A-3 |
|
Electronic throttle control |
| E64 |
2 |
Blue |
A-3 |
|
Wastegate control solenoid |
