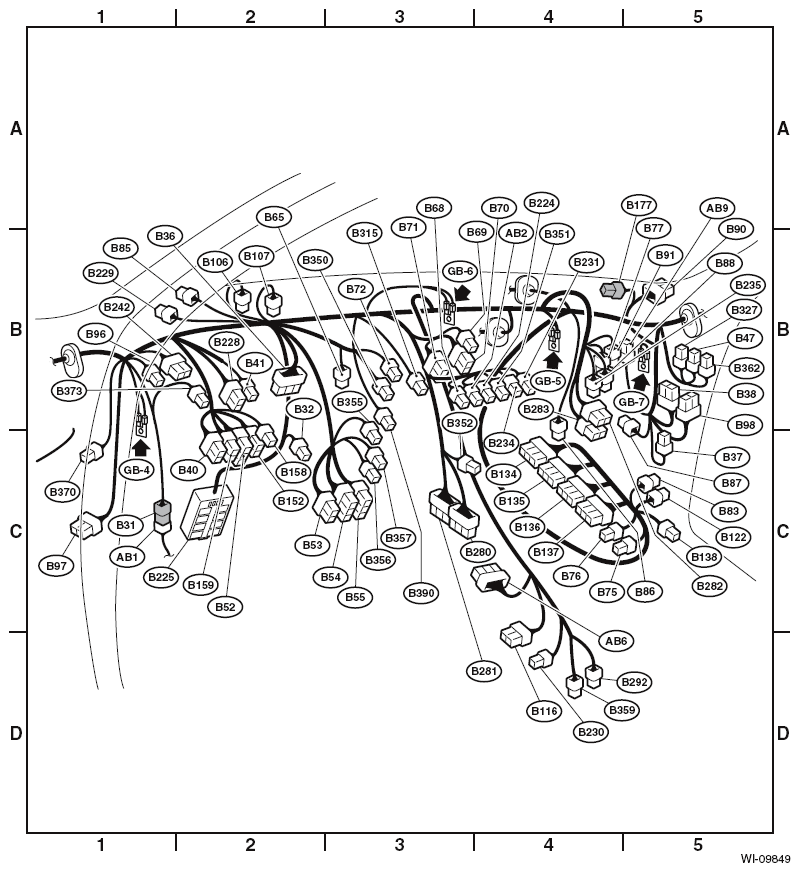

| B31 |
12 |
Yellow |
C-1 |
AB1 |
Airbag wiring harness |
| B32 |
8 |
|
C-2 |
|
Turn signal & hazard unit |
| B36 |
28 |
|
B-2 |
i1 |
Instrument panel wiring harness |
| B37 |
8 |
|
C-5 |
i2 |
Instrument panel wiring harness (Manual A/C) |
| B38 |
20 |
|
B-5 |
i3 |
Instrument panel wiring harness |
| B40 |
16 |
Black |
C-2 |
|
Data link connector |
| B41 |
2 |
|
B-2 |
|
Power window circuit breaker |
| B47 |
6 |
Brown |
B-5 |
|
Main relay |
| B52 |
24 |
|
C-2 |
|
Fuse & relay box (F/B) |
| B53 |
20 |
|
C-3 |
|
Shield joint connector (4AT model) |
| B54 |
24 |
|
C-3 |
|
TCM |
| B55 |
24 |
Gray |
C-3 |
|
TCM (5AT model) |
| 31 |
|
|
TCM (4AT model) |
| B65 |
4 |
Black |
B-3 |
|
Stop and brake switch (Models with cruise control) |
| B68 |
8 |
|
B-3 |
|
Roll connector |
| B69 |
4 |
|
B-3 |
|
Parking switch |
| B70 |
18 |
|
B-3 |
|
Combination switch |
| B71 |
17 |
|
B-3 |
|
| B72 |
6 |
|
B-3 |
|
Ignition switch |
| B75 |
2 |
Green |
C-4 |
B76 |
Test mode connector |
| B76 |
2 |
Green |
C-4 |
B75 |
| B77 |
7 |
Green |
B-4 |
|
Mode actuator (Manual A/C) |
| B83 |
8 |
|
C-5 |
|
Joint connector |
| B85 |
2 |
Black |
B-2 |
|
Diode (Light) |
| B86 |
4 |
|
B-4 |
|
Blower fan controller (Auto A/C)
* Blower resistor (Manual A/C) |
| B87 |
2 |
|
B-5 |
|
Blower fan motor |
| B88 |
5 |
|
B-5 |
|
Evaporator thermo switch (Manual A/C) |
| 2 |
|
Evaporator thermo switch (Auto A/C) |
| B90 |
16 |
|
B-5 |
R50 |
Roof cord |
| B91 |
7 |
Green |
B-4 |
|
FRESH/RECIRC actuator |
| B96 |
8 |
Black |
B-1 |
|
Daytime running light control module |
| B97 |
20 |
|
C-1 |
R1 |
Rear wiring harness |
| B98 |
16 |
|
B-5 |
R2 |
| B106 |
2 |
|
B-2 |
|
Clutch switch |
| B107 |
2 |
Blue |
B-2 |
|
Clutch switch (Model with cruise control) |
| B116 |
12 |
|
D-4 |
|
AT select lever |
| B122 |
8 |
|
C-5 |
|
Joint connector (E/G) |
| B134 |
34 |
|
C-4 |
|
ECM |
| B135 |
35 |
|
C-4 |
|
| B136 |
35 |
|
C-4 |
|
| B137 |
31 |
|
C-4 |
|
| B138 |
8 |
|
C-5 |
|
Joint connector (H6 model and H4 Non-turbo model) |
| B152 |
10 |
Gray |
C-2 |
|
Fuse & relay box (F/B) |
| B158 |
8 |
|
C-2 |
|
| B159 |
9 |
Brown |
C-2 |
|
| B177 |
2 |
|
B-4 |
|
Wiper deicer |
| B224 |
2 |
|
B-4 |
|
Key switch illumination |
| B225 |
40 |
Black |
C-2 |
|
Fuse (Relay block) |
| |
Mirror heater relay |
| |
Starter relay |
| |
Front fog light relay |
| |
Power window relay |
| |
Blower fan relay |
| |
Daytime running light relay |
| |
Wiper deicer relay |
| |
Seat heater relay |
| B228 |
15 |
|
B-2 |
|
OP connector |
| B229 |
2 |
Black |
B-1 |
|
Diode (Parking brake) |
| B230 |
6 |
Black |
D-4 |
|
Yaw rate sensor (VDC) |
| B231 |
4 |
|
B-4 |
|
Steering angle sensor (VDC) |
| B234 |
8 |
|
B-4 |
|
CAN joint connector (VDC) |
| B235 |
7 |
Green |
B-4 |
|
Passenger seat air mix actuator (Auto A/C) |
| B242 |
10 |
|
B-1 |
|
Daytime running light control module |
| B280 |
30 |
|
C-3 |
|
Body integrated unit |
| B281 |
28 |
|
C-3 |
|
| B282 |
16 |
|
B-4 |
|
Auto A/C control module |
| B283 |
20 |
|
B-4 |
|
| B292 |
3 |
|
D-4 |
|
ABS G sensor |
| B315 |
6 |
Black |
B-3 |
|
Accelerator pedal position sensor |
| B327 |
6 |
Brown |
B-5 |
|
Oxygen sensor relay |
| B350 |
4 |
|
B-3 |
|
Key lock solenoid |
| B351 |
2 |
Black |
B-4 |
|
Antenna |
| B352 |
8 |
|
C-3 |
|
CAN joint connector |
| B355 |
8 |
|
B-3 |
|
CAN joint connector (TCM) |
| B356 |
4 |
Black |
C-3 |
|
BACK-UP LIGHT RELAY (5AT MODEL) |
| B357 |
4 |
Black |
C-3 |
|
PV-IGN relay (5AT model) |
| B359 |
3 |
Black |
D-4 |
|
Lateral G sensor (5AT model) |
| B362 |
8 |
Black |
B-5 |
|
Relay holder |
| B370 |
2 |
Black |
C-1 |
|
Diode (Engine status) |
| B373 |
2 |
|
B-1 |
|
Fuse & relay box (F/B) |
| B390 |
7 |
Green |
B-3 |
|
Driver seat air mix actuator (Auto A/C) |
| AB1 |
12 |
Yellow |
C-1 |
B31 |
Airbag wiring harness |
| AB2 |
4 |
Yellow |
B-4 |
AB7 |
Inflator (Driver seat) |
| AB6 |
28 |
Yellow |
C-4 |
|
Airbag control module |
| AB9 |
4 |
Yellow |
B-5 |
AB1 0 |
Inflator (Passenger's seat) |
