Airbag System: Wiring Diagram

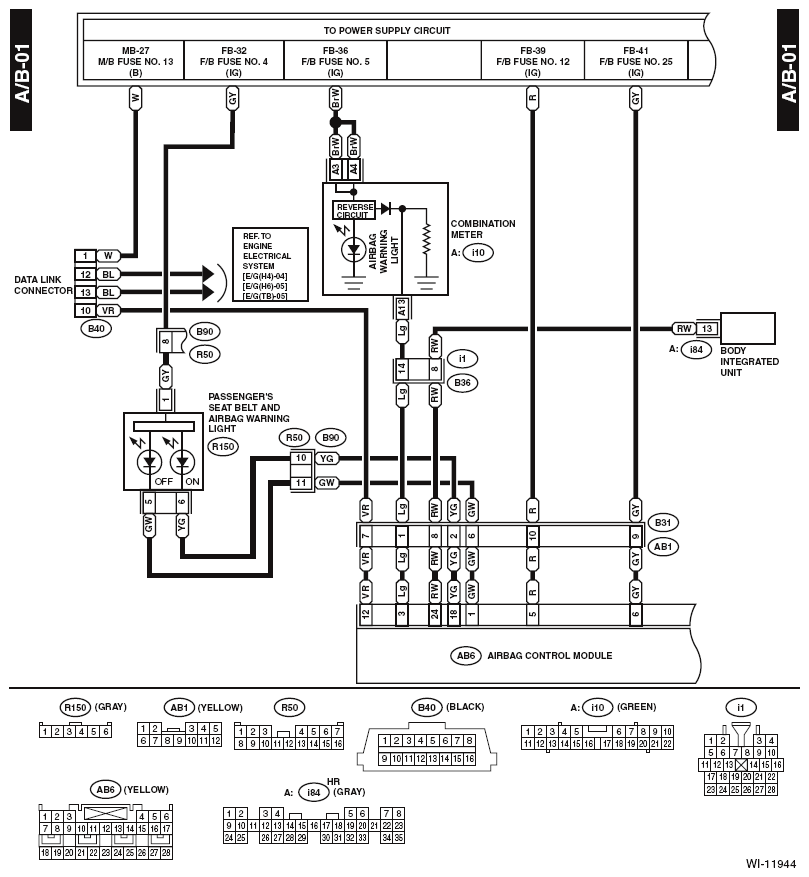

Fig 1: Airbag System Wiring Diagram (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

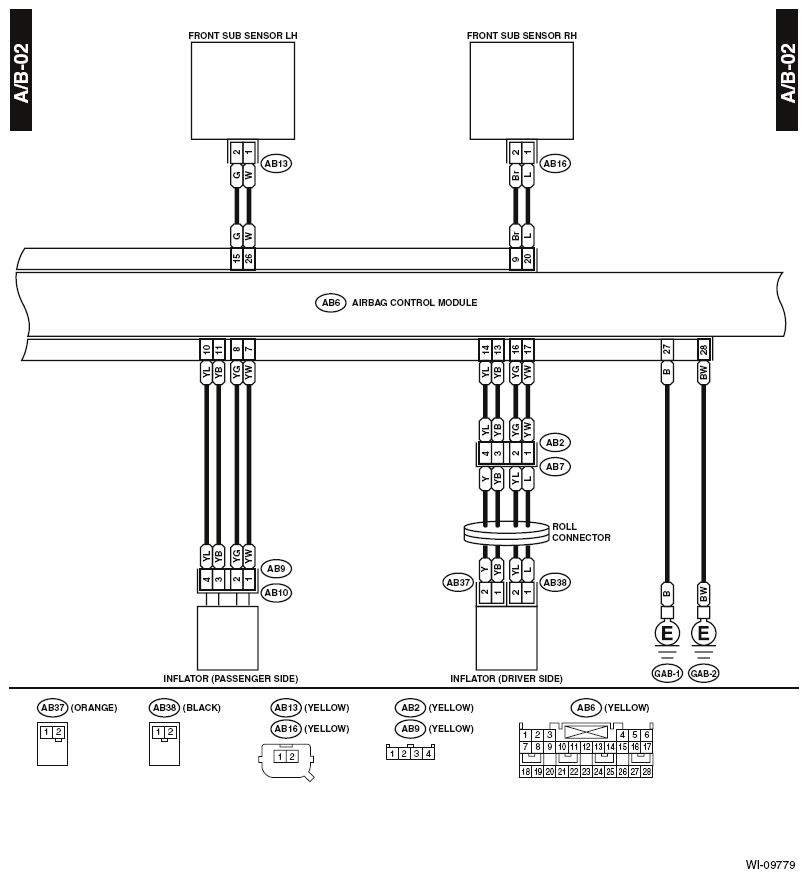

Fig 2: Airbag System Wiring Diagram (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

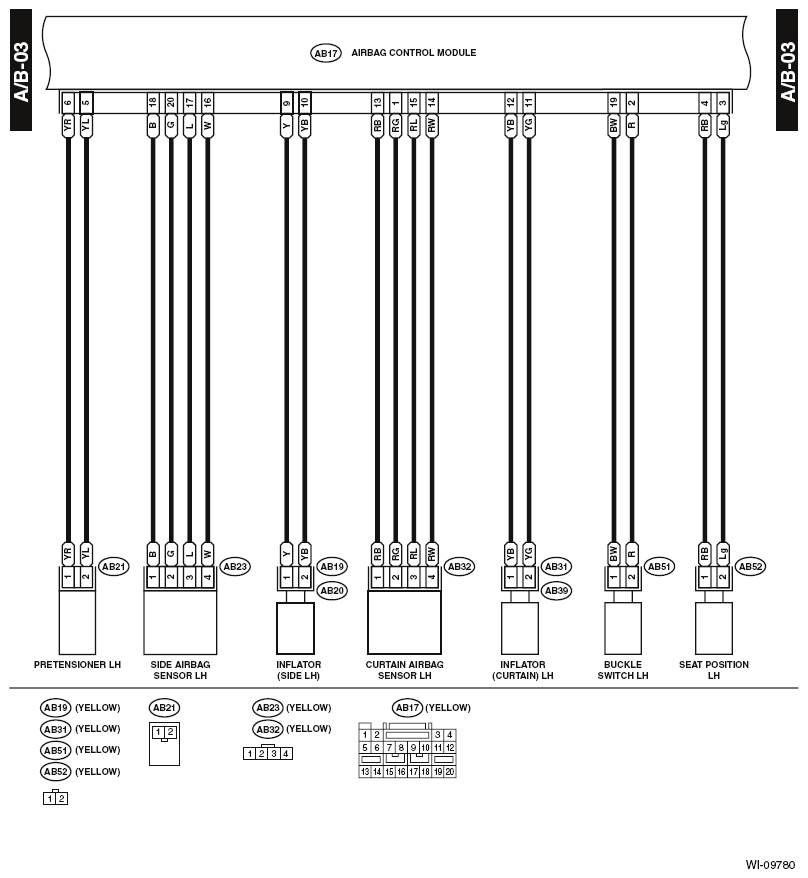

Fig 3: Airbag System Wiring Diagram (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.

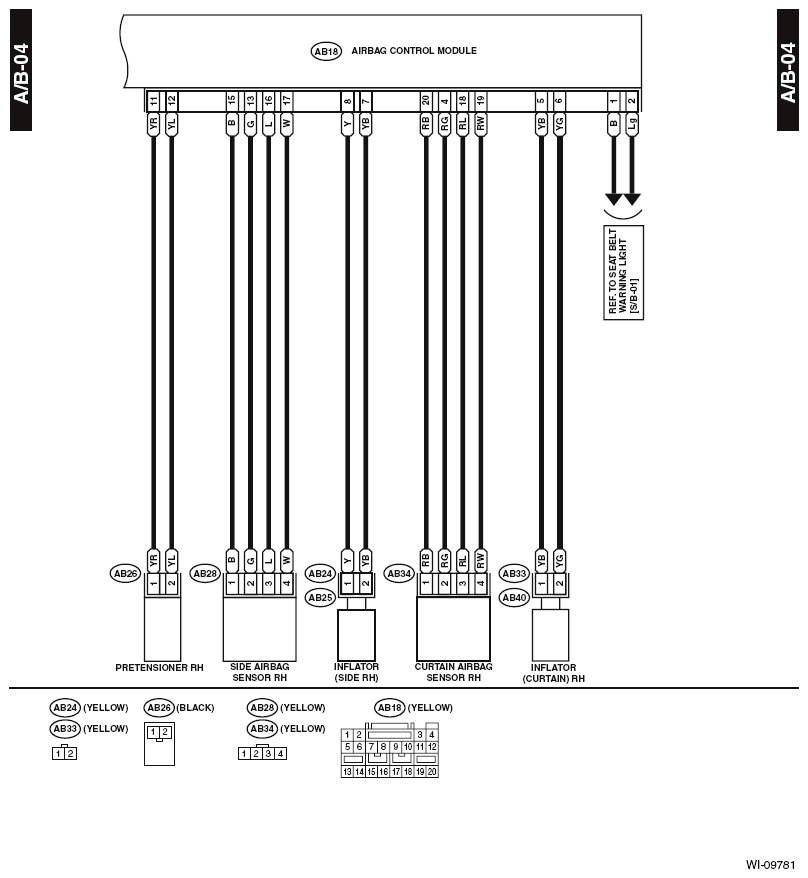

Fig 4: Airbag System Wiring Diagram (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
