Wagon Model

  1. Disconnect the ground cable from battery.
  2. Remove the roof trim. < Ref. to WAGON MODEL , REMOVAL, Roof Trim. >
  3. Disconnect the harness connector of the motor assembly.
    Fig 1: Identifying Harness Connector Of Motor Assembly
    G05022849
  4. Remove the front and rear glass lid. < Ref. to WAGON MODEL (FRONT) , REMOVAL, Glass Lid. > < Ref. to WAGON MODEL (REAR) , REMOVAL, Glass Lid. >
  5. Remove the attachment bolts (A) on the rear frame bracket of the frame assembly.
    Fig 2: Locating Attachment Bolts On Rear Frame Bracket Of Frame Assembly
    G05022850
  6. Remove the drain tube from frame assembly.
  7. Remove the frame bracket (A).
  8. Remove bolts (B) and nuts (C), then remove the frame assembly.

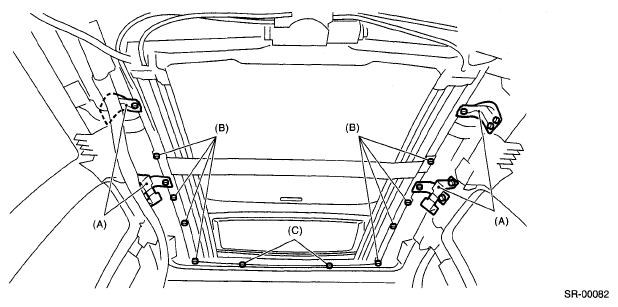

    Fig 3: Identifying Frame Assembly Bolts And Nuts
    G05022851
