Side Sill Spoiler: Removal

Remove the clips (two in the front fender arch, six for side sill spoiler lower area), and remove the side spoiler.

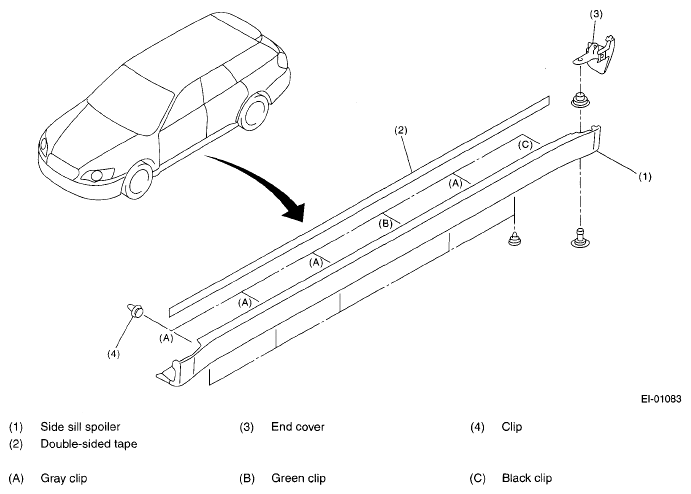

Fig 1: Identifying Side Sill Spoiler Clips
G05022941
NOTE: When peeling the double sided tape, refer to removal procedures for the side protector. < Ref. to REMOVAL , SIDE PROTECTOR. >
