Universal Joint: Removal

  1. Set the vehicle on a lift.
  2. Remove the steering wheel. < Ref. to , REMOVAL , Steering Wheel. >
  3. Lift-up the vehicle.
  4. Remove universal joint bolts and then remove universal joint.
    CAUTION: Scribe alignment marks on universal joint so that it can be reassembled at the original serration.

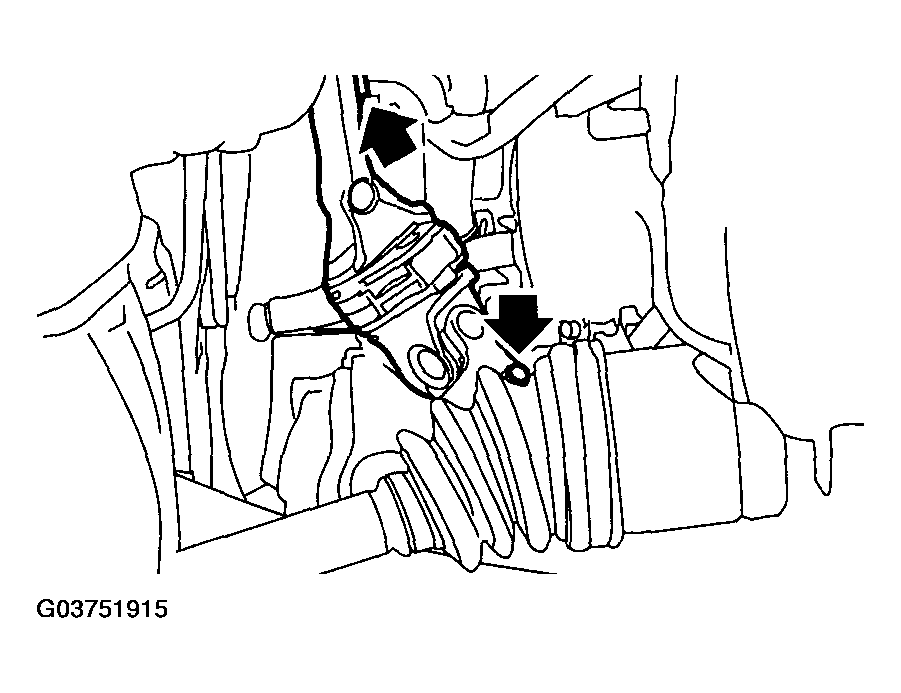

    Fig 1: Removing Universal Joint
    G03751915Courtesy of SUBARU OF AMERICA, INC.
