Cylinder Head Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.

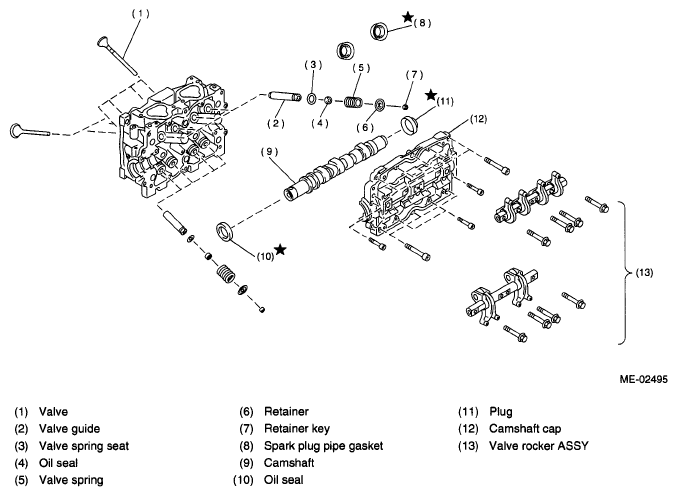

Fig 1: Identifying Cylinder Head Assembly Components

G04988342

Courtesy of SUBARU OF AMERICA, INC.

Installation of valve spring and valve
1. Place cylinder head on ST.
  ST 498267800 CYLINDER HEAD TABLE
2. Coat stem of each valve with engine oil and insert valve into valve guide.
  NOTE: When inserting valve into valve guide, use special care not to damage the oil seal lip.
3. Install valve spring and retainer.
  NOTE: Be sure to install the valve springs with their close-coiled end facing the seat on the cylinder head.
4. Set ST on valve spring.
  ST 499718000 VALVE SPRING REMOVER

  Fig 2: Installing Valve Spring And Retainer Using Valve Spring Remover ST (499718000)
  Courtesy of SUBARU OF AMERICA, INC.
5. Compress valve spring and fit retainer key.

  Fig 3: Identifying Valve Spring And Retainer Key
  Courtesy of SUBARU OF AMERICA, INC.
6. After installing, tap valve spring retainers lightly with wooden hammer for better seating.
