Cylinder Block: Disassembly

WARNING: This page is about a different variant/trim than selected.

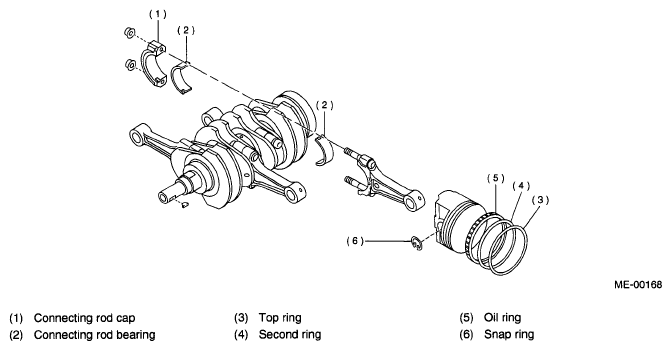

Fig 1: Disassembling Crankshaft Components
G04988408Courtesy of SUBARU OF AMERICA, INC.
  1. Remove connecting rod cap.
  2. Remove connecting rod bearing.
    NOTE: Arrange removed connecting rod, connecting rod cap and bearing in order to prevent confusion.
  3. Remove piston rings using the piston ring expander.
  4. Remove the oil ring by hand.
    NOTE: Arrange the removed piston rings in good order to prevent confusion.
  5. Remove snap ring.
