Transfer Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the manual transmission assembly from vehicle. < Ref. to REMOVAL , MANUAL TRANSMISSION ASSEMBLY. >
  2. Remove the back-up light switch and neutral position switch. < Ref. to REMOVAL , SWITCHES AND HARNESS. >
  3. Remove the transfer case with extension case assembly. < Ref. to REMOVAL , TRANSFER CASE AND EXTENSION CASE ASSEMBLY. >
  4. Remove the extension case assembly.
  5. Remove the transfer driven gear.
    Fig 1: Identifying Transfer Driven Gear
    G05003002Courtesy of SUBARU OF AMERICA, INC.

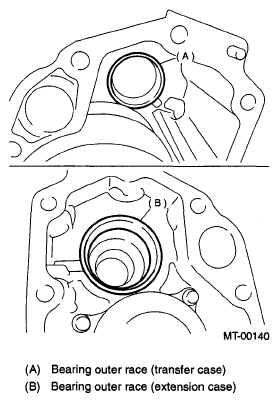

  6. Remove the bearing outer race from extension case and transfer case.
    Fig 2: Identifying Bearing Outer Race
    G04990916Courtesy of SUBARU OF AMERICA, INC.
