Transfer Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the bearing outer race to extension case and transfer case.

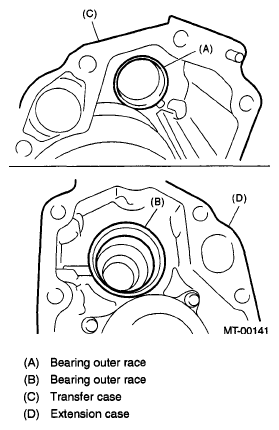

    Fig 1: Identifying Bearing Outer Race, Extension Case And Transfer Case
    G04990917Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer driven gear.
    Fig 2: Identifying Transfer Driven Gear
    G05003002Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer case and extension case assembly. < Ref. to INSTALLATION , TRANSFER CASE AND EXTENSION CASE ASSEMBLY. >
  4. Install the back-up light switch and neutral position switch. < Ref. to INSTALLATION , SWITCHES AND HARNESS. >
  5. Install the manual transmission assembly to vehicle. < Ref. to INSTALLATION , Manual Transmission Assembly. >
