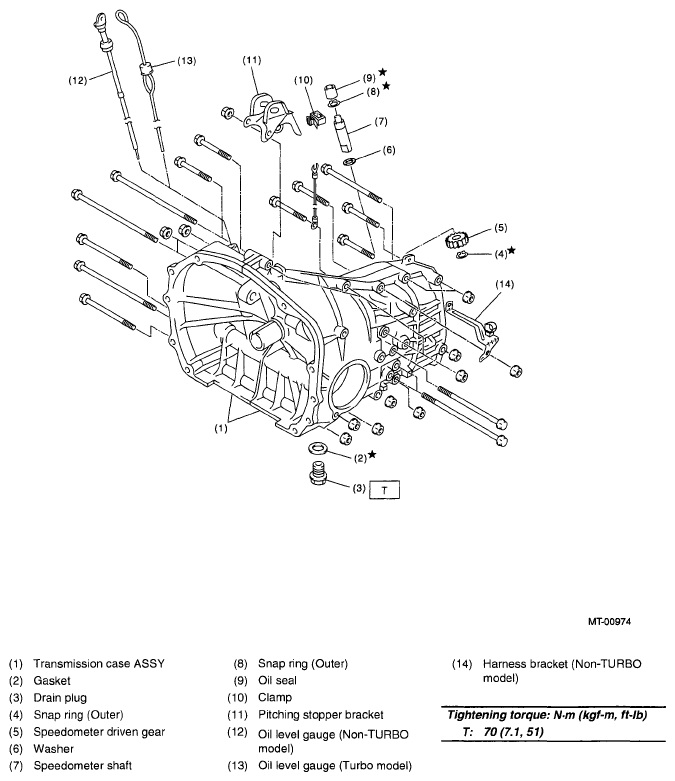

Transmission Case
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
- Transmission case tightening torque
TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATION
|
|
Bolt No. |
Bolt size |
Tightening torque: N.m (kgf-m, ft-lb) |
| < 5 > to < 15 > |
8 mm |
25 (2.5, 18.1) |
< 1 > to < 4 >
< 16 >, < 17 > |
10 mm |
39 (4.0, 28.9) |
