Section 18 (Manual Transmission And Differential)
>>
General Description
>>
Components With Torque Specifications
>>
Main Shaft Assembly
Main Shaft Assembly
WARNING:
This page is about a different variant/trim than selected.

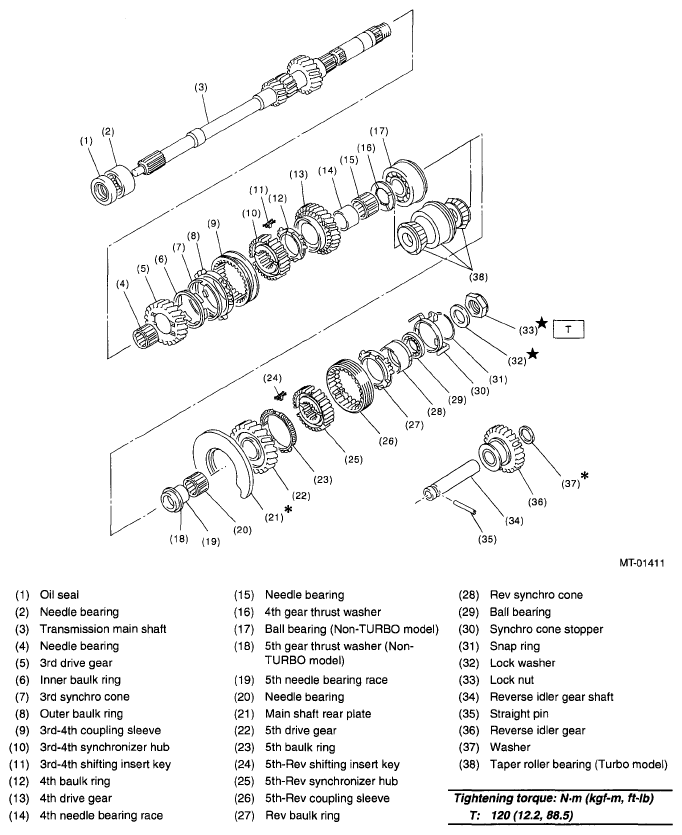

Fig 1: Main Shaft Assembly Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
