Diagnostic Method
WARNING: This page is about a different variant/trim than selected.

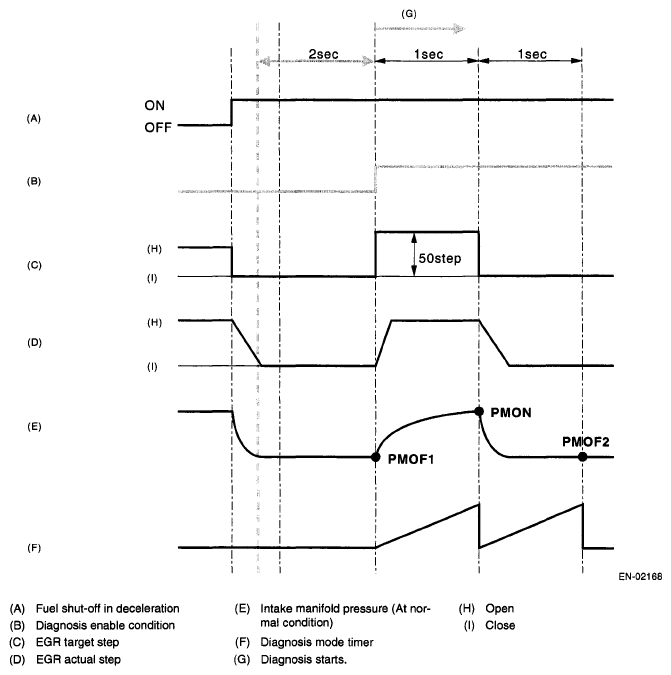

Measure the pressure in the following procedures when the enable conditions are completed, and then diagnosis by calculating the result.
- PMOF1 is equal to the intake manifold pressure at enable condition completed, and EGR target step is set to 50 steps (almost fully opened).
- PMON is equal to the intake manifold pressure in 1 second after EGR target step is set 50 steps (when enable conditions are completed), and EGR target step is set to 0 step.
- PMOF2 is equal to the intake manifold pressure in 1 second after EGR target step is set to 0 step (in 2 seconds after enable conditions are completed).
- Calculate the judged value using the following formula.
Judged value = [PMON - (PMOF1 + PMOF2)/2]
Judge NG when the malfunction criteria bellows are completed. Judge OK and clear NG when the malfunction criteria bellows are not completed.
Judgment Value
JUDGMENT VALUE
| Malfunction Criteria | Threshold Value | DTC |
|---|---|---|
| Judged value | < 1.3 kPa (10 mmHg, 0.39 inHg) ≥ 146.6 kPa (1,100 mmHg, 43.31 inHg) |
P0400 |
Time Needed for Diagnosis : 3 seconds
Malfunction Indicator Light Illumination : 2 continuous driving cycles.
