Outline Of Diagnosis
WARNING: This page is about a different variant/trim than selected.

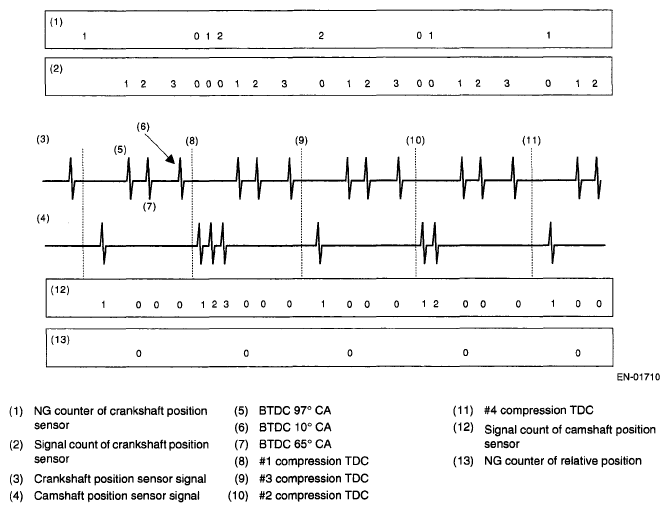

Detect the malfunction of crankshaft position sensor output property.
Compare the normal crankshaft position sensor signal with normal camshaft position sensor signal. When each input number does not correspond, judge NG.
- Cylinder judgment method
When BTDC97°CA crankshaft position sensor signal is input, judge what cylinder piston is brought to the top dead center of compression by camshaft position sensor signal number.
CAMSHAFT POSITION SENSOR SIGNAL NUMBER
| Camshaft position sensor signal number | Next top dead center of compression |
|---|---|
| 3 | #3 |
| 1 | #2 |
| 2 | #4 |
| 1 | #1 |
