Outline Of Diagnosis
WARNING: This page is about a different variant/trim than selected.
Detect the malfunction of crankshaft position sensor output property.

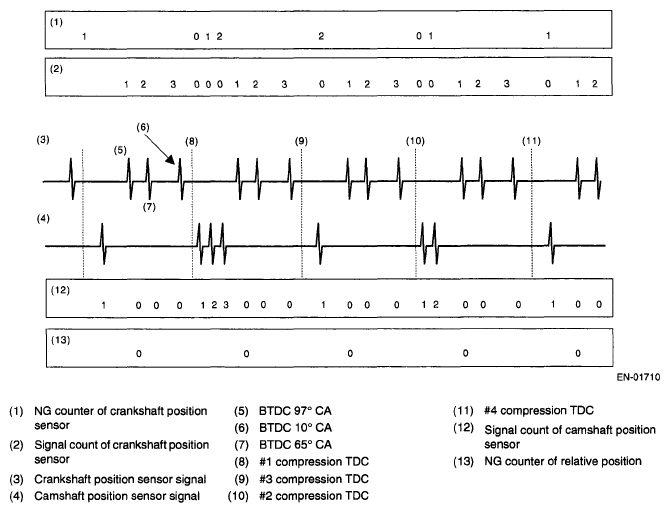

Compare the normal crankshaft position sensor signal with normal camshaft position sensor signal. When
- Cylinder judgment method
When BTDC97°CA crankshaft position sensor signal is input, judge what cylinder piston is brought to the top dead center of compression by camshaft position sensor signal number.
CAMSHAFT POSITION SENSOR SIGNAL NUMBER
| Camshaft position sensor signal number | Next top dead center of compression |
|---|---|
| 3 | #3 |
| 1 | #2 |
| 2 | #4 |
| 1 | #1 |
