Transmission Control Module (TCM) I/O Signal: Schematic

WARNING: This page is about a different variant/trim than selected.

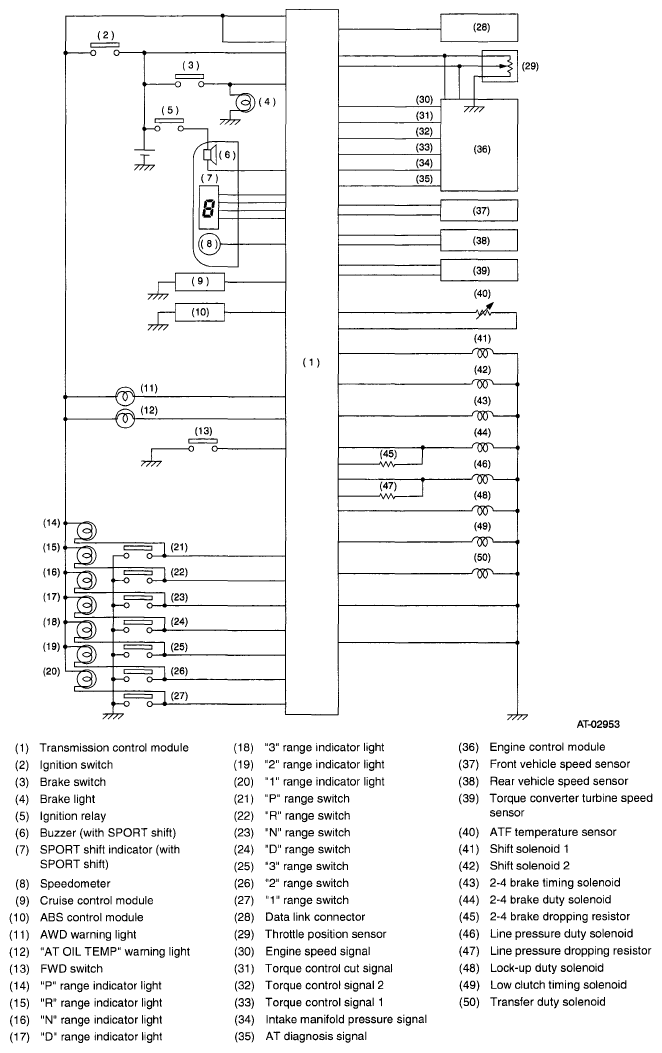

Fig 1: Transmission Control Module Schematic Diagram
G04990718Courtesy of SUBARU OF AMERICA, INC.
