At Oil Temp Warning Light Does Not Come On Or Go Off

WARNING: This page is about a different variant/trim than selected.

DIAGNOSIS:

The AT OIL TEMP warning light circuit is open or shorted.

TROUBLE SYMPTOM:

WIRING DIAGRAM:

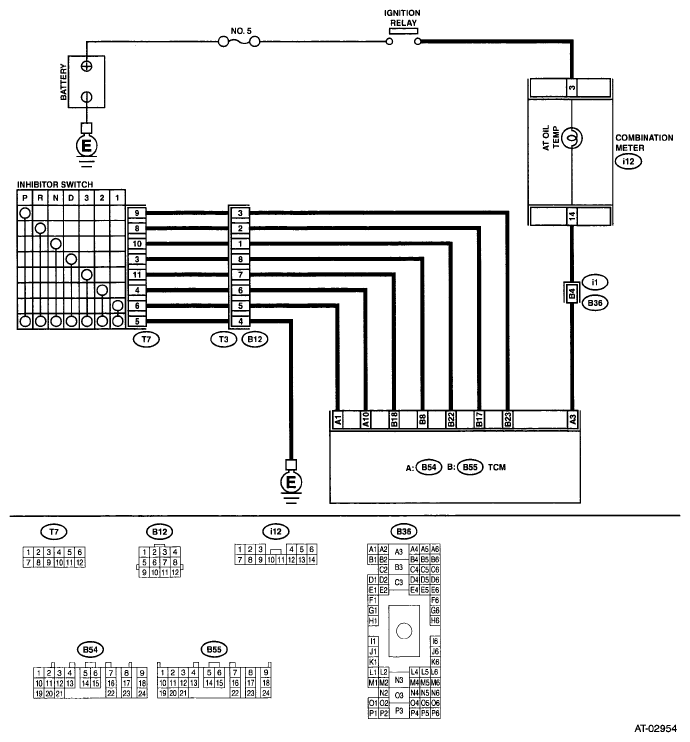

Fig 1: Oil Temp Warning Light - Wiring Diagram
G04990725Courtesy of SUBARU OF AMERICA, INC.
DIAGNOSTIC PROCEDURE CHART

Step Check Yes No
1 CHECK AT OIL TEMP WARNING LIGHT.
Turn the ignition switch to ON (engine OFF).
Does the AT OIL TEMP warning light illuminate? Go to step 3.  Go to step 2.
2 CHECK AT OIL TEMP WARNING LIGHT.
  1. Turn the ignition switch to OFF.
  2. Remove the combination meter.
Is the AT OIL TEMP warning light bulb OK? Go to step 4.  Check the combination meter.
3 CHECK AT OIL TEMP WARNING LIGHT.
Perform "Read Diagnostic Trouble Code (DTC)". < Ref. to READ DIAGNOSTIC TROUBLE CODE (DTC) . >
Does the AT OIL TEMP warning light blink? A temporary poor contact of the connector or harness may be the cause. Repair the harness or connector in TCM, inhibitor switch and combination meter. Go to step 9.
4 CHECK FUSE (No. 5).
Remove the fuse (No. 5).
Is the fuse (No. 5) blown out? Replace the fuse (No. 5). If replaced fuse (No. 5) is blown out easily, repair short circuit in harness between fuse (No. 5) and combination meter. Go to step 5.
5 CHECK HARNESS CONNECTOR BETWEEN COMBINATION METER AND IGNITION SWITCH.
  1. Turn the ignition switch to ON (engine OFF).
  2. Measure the voltage between combination meter connector and chassis ground.

    Connector & terminal

    (I12) No. 3 (+) - Chassis ground (-):

Is the voltage more than 9 V? Go to step 6.  Repair the open circuit in harness between combination meter and battery.
6 CHECK COMBINATION METER.
Measure the voltage between combination meter connector and chassis ground.
Connector & terminal
(i12) No. 14 (+) - Chassis ground (-):
Is the voltage less than 9 V? Repair the combination meter. < Ref. to COMBINATION METER ASSEMBLY . > Go to step 7.
7 CHECK OPEN CIRCUIT OF HARNESS.
  1. Turn the ignition switch to OFF.
  2. Disconnect the connector from combination meter connector.
  3. Measure the resistance of harness between combination meter.

    Connector & terminal

    (B54) No. 3 - (I12) No. 14:

Is the resistance less than 1 Ω? Go to step 8.  Repair the open circuit in harness between TCM and combination meter, and poor contact in coupling connector.
8 CHECK INPUT SIGNAL FOR TCM.
  1. Connect the connector to TCM and combination meter.
  2. Turn the ignition switch to ON (engine OFF).
  3. Measure the voltage between TCM connector and chassis ground.

    Connector & terminal

    (B54) No. 3 (+) - Chassic ground (-):

Is the voltage less than 1 V? Even if the AT OIL TEMP warning light illuminates, the circuit has returned to a normal condition at this time. A temporary poor contact of the connector or harness may be the cause. Repair the harness or connector in TCM. Replace the TCM. < Ref. to TRANSMISSION CONTROL MODULE (TCM) . >
9 CHECK INHIBITOR SWITCH.
  1. Connect the Subaru Select Monitor to data link connector.
  2. Turn the ignition switch to ON.
  3. Turn the Subaru Select Monitor to ON.
  4. Read the data of range switch using Subaru Select Monitor.

  • Range switch is indicated in ON ←→: OFF.
When each range is selected, does the LED of Subaru Select Monitor light up? Go to step 10.  Check the inhibitor switch circuit. < Ref. to CHECK INHIBITOR SWITCH , Diagnostic Procedure without Diagnostic Trouble Code (DTC). >
10 CHECK SHORT CIRCUIT OF HARNESS.
  1. Disconnect the connector from TCM.
  2. Remove the combination meter.
  3. Disconnect the connector from combination meter.
  4. Measure the resistance of harness connector between TCM and chassis ground.

    Connector & terminal

    (B54) No. 13 - Chassis ground:

Is the resistance less than 1 MΩ? Check the TCM power supply and ground line. < Ref. to CHECK POWER SUPPLY AND GROUND LINE , Diagnostic Procedure for AT OIL TEMP Warning Light. > Repair the short circuit in harness between combination meter connector and TCM connector.
