Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.

Insert the ST into clutch disc and install them on the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful to its direction.

ST 499747100 CLUTCH DISC GUIDE

Fig 1: Identifying Clutch Disc Guide ST 499747100
Courtesy of SUBARU OF AMERICA, INC.
Position "0" marks on clutch cover and flywheel 120° apart, and then tighten the clutch cover installation bolts diagonally.
NOTE:
- "0" marks indicate the directions of residual unbalance.
- Temporarily tighten the bolts by hand. Each bolt should be tightened to the specified torque in a crisscross fashion.
Tightening torque: 16 N.m (1.6 kgf-m, 11.8 ft-lb)

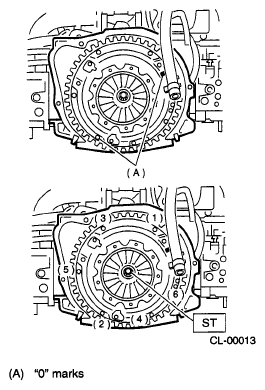

Fig 2: Identifying "0" Marks On Clutch Cover And Flywheel
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. < Ref. to INSTALLATION , MANUAL TRANSMISSION ASSEMBLY. >
