Radiator Main Fan System: Schematic

WARNING: This page is about a different variant/trim than selected.

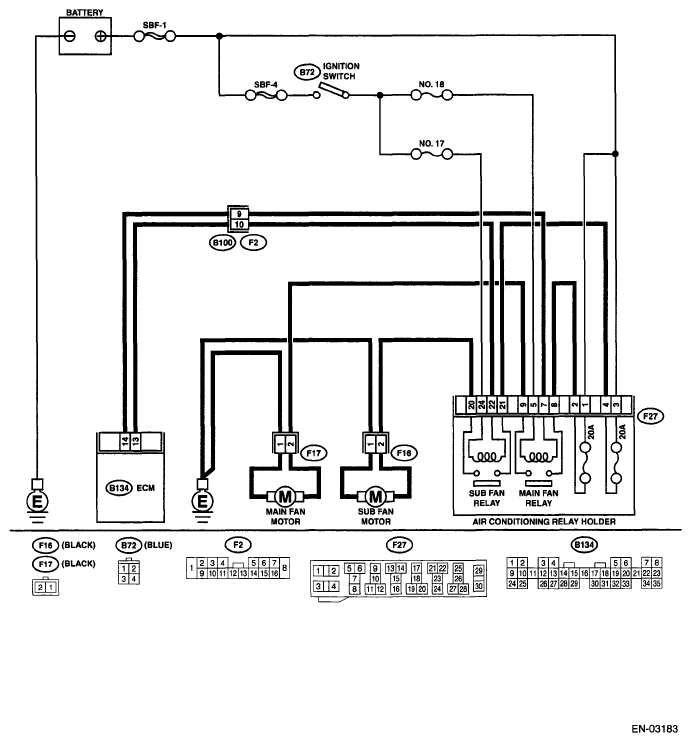

Fig 1: Radiator Main Fan System Schematic

G04988456
