Oil Pump: Disassembly
WARNING: This page is about a different variant/trim than selected.

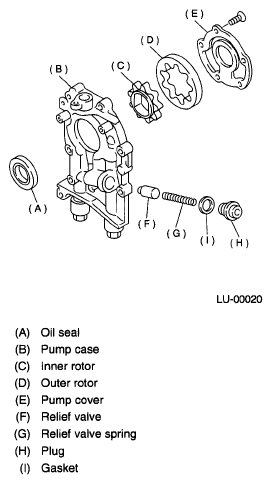

Remove screws which secure oil pump cover and disassemble oil pump. Inscribe alignment marks on inner and outer rotors so that they can be replaced in their original positions during reassembly.
Courtesy of SUBARU OF AMERICA, INC.
