Drive Cycle C (Drive According To The Following Drive Pattern)
WARNING: This page is about a different variant/trim than selected.

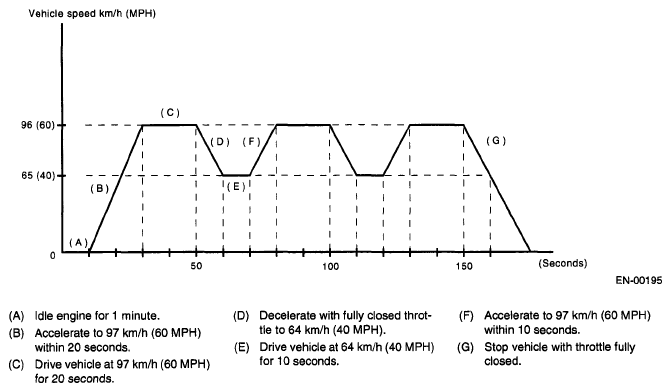

DRIVE CYCLE (DRIVE ACCORDING TO FOLLOWING DRIVE PATTERN)
| DTC No. | Item | Condition |
|---|---|---|
| *P0065 | Air assisted injector control range/performance | - |
| *P0121 | Throttle/pedal position sensor/switch "A" circuit range/performance | - |
| *P0126 | INSUFFICIENT COOLANT TEMPERATURE FOR STABLE OPERATION | - |
| *P0139 | O2 Sensor circuit slow response (Bank 1 Sensor 2) | - |
| *P0171 | System too lean (Bank 1) | - |
| *P0172 | System too rich (Bank 1) | - |
| *P0301 | Cylinder 1 misfire detected | - |
| *P0302 | Cylinder 2 misfire detected | - |
| *P0303 | Cylinder 3 misfire detected | - |
| *P0304 | Cylinder 4 misfire detected | - |
| *P0400 | Exhaust gas recirculation flow | - |
| *P2096 | Post catalyst fuel trim system too lean bank 1 | - |
| *P2097 | Post catalyst fuel trim system too rich bank 1 | - |
