DTC P1448 - Fuel tank sensor control valve range/performance -

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:
- Two consecutive driving cycles with malfunction
CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode < Ref. to OPERATION , CLEAR MEMORY MODE > and INSPECTION MODE < Ref. to OPERATION , INSPECTION MODE. >
WIRING DIAGRAM:

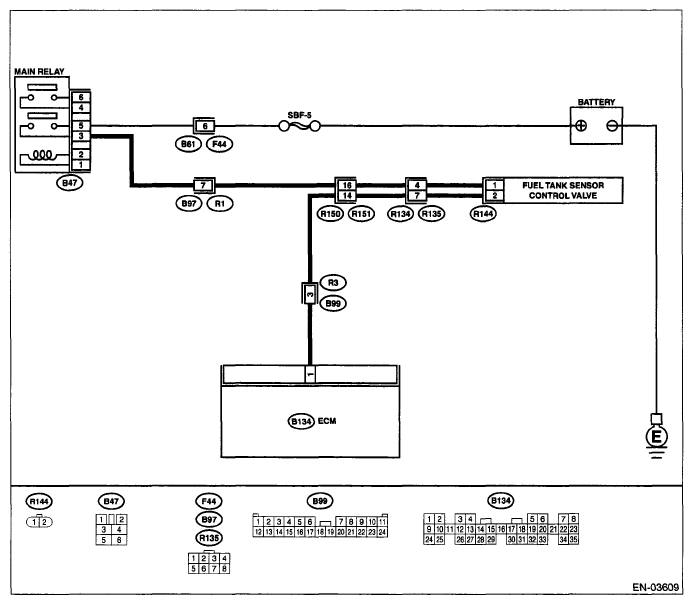

Fig 1: Fuel Tank Sensor Control Valve Range/Performance Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >	Go to step 2.
2 CHECK FUEL FILLER CAP. Turn ignition switch to OFF. Open the fuel flap.	Is the fuel filler cap tightened securely?	Go to step 3.	Tighten fuel filler cap securely.
3 CHECK PRESSURE/VACUUM LINE. NOTE: Check the following items. Disconnection, leakage and clogging of the vacuum hoses and pipes between fuel tank pressure sensor and fuel tank Disconnection, leakage and clogging of air ventilation hoses and pipes between fuel filler pipe and fuel tank	Is there any malfunction in pressure/vacuum line?	Repair or replace hoses and pipes.	Replace fuel tank pressure sensor. < Ref. to FUEL TANK PRESSURE SENSOR . >
