DTC P0604 - Internal Control Module Random Access Memory (Ram) Error -

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:
- Detected simultaneously at occurrence of malfunction.
TROUBLE SYMPTOM:
- Engine does not start.
- Engine stalls.

CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode < Ref. to OPERATION , CLEAR MEMORY MODE > and INSPECTION MODE < Ref. to OPERATION , INSPECTION MODE. >

WIRING DIAGRAM:

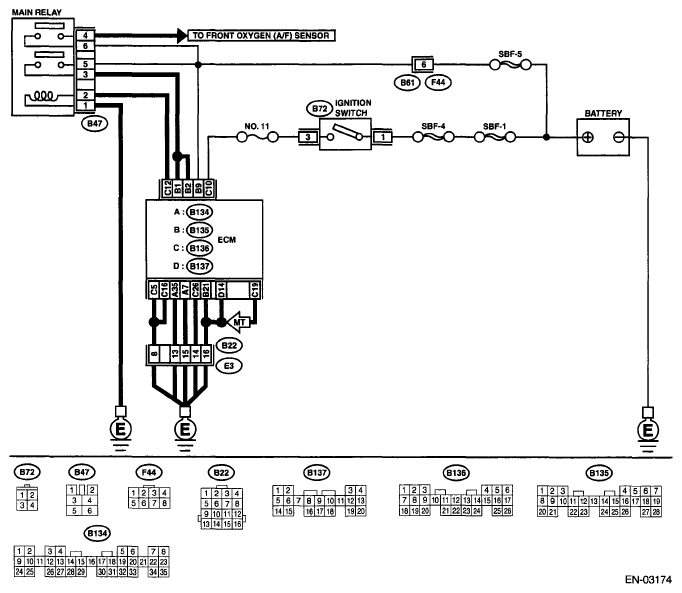

Fig 1: Internal Control Module Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Inspect the related DTC using List of Diagnostic Trouble Code (DTC).< Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >	A temporary poor contact.
