DTC P0111 - Intake Air Temperature Circuit Range/Performance -

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:
- Two consecutive driving cycles with malfunction
TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance
CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode < Ref. to OPERATION , CLEAR MEMORY MODE > and INSPECTION MODE < Ref. to OPERATION , INSPECTION MODE. >
WIRING DIAGRAM:

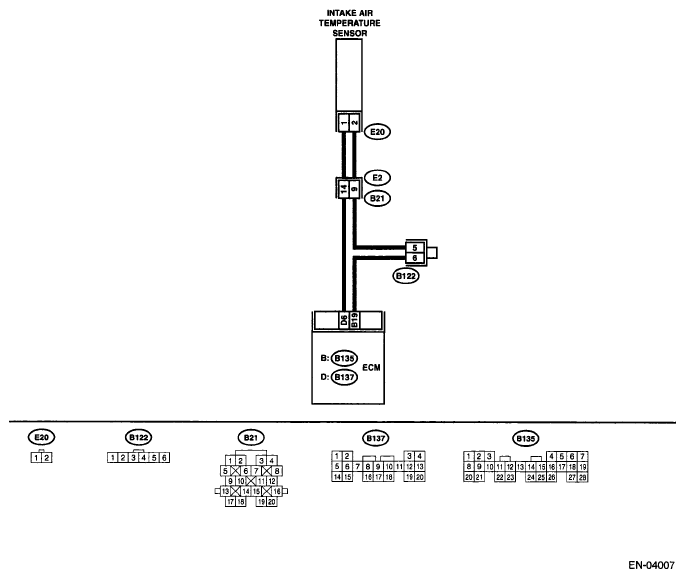

Fig 1: Intake Air Temperature Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE

Step	Check	Yes	No
1 CHECK ANY OTHER DTC ON DISPLAY.	Is any other DTC displayed?	Inspect the relevant DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > NOTE: In this case, it is not necessary to inspect DTC P0111.	Go to step 2.
2 CHECK ENGINE COOLANT TEMPERATURE. Start the engine and warm it up completely. Measure engine coolant temperature using Subaru Select Monitor or general scan tool. NOTE: Subaru Select Monitor For detailed operation procedure, refer to the "READ CURRENT DATA FOR ENGINE". < Ref. to SUBARU SELECT MONITOR . > General scan tool For detailed operation procedures, refer to the General Scan Tool Instruction Manual.	Is the measured value within 75 to 95°C (167 to 203°F)?	Replace intake air temperature sensor. < Ref. to REMOVAL , INTAKE AIR TEMPERATURE SENSOR. >	Inspect DTC P0125 using "List of Diagnostic Trouble Code (DTC)". < Ref. to LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
