Mt Model

  1. Pull up parking brake lever and block tires.
  2. Disconnect ground cable from battery.
  3. Remove steering column.

    < Ref. to REMOVAL , Tilt Steering Column . >

  4. Disconnect connectors from stop light and clutch switches.
  5. Remove snap pins which secure lever to push rod and operating rod.
  6. Remove clevis pins which secure lever to push rod and operating rod.

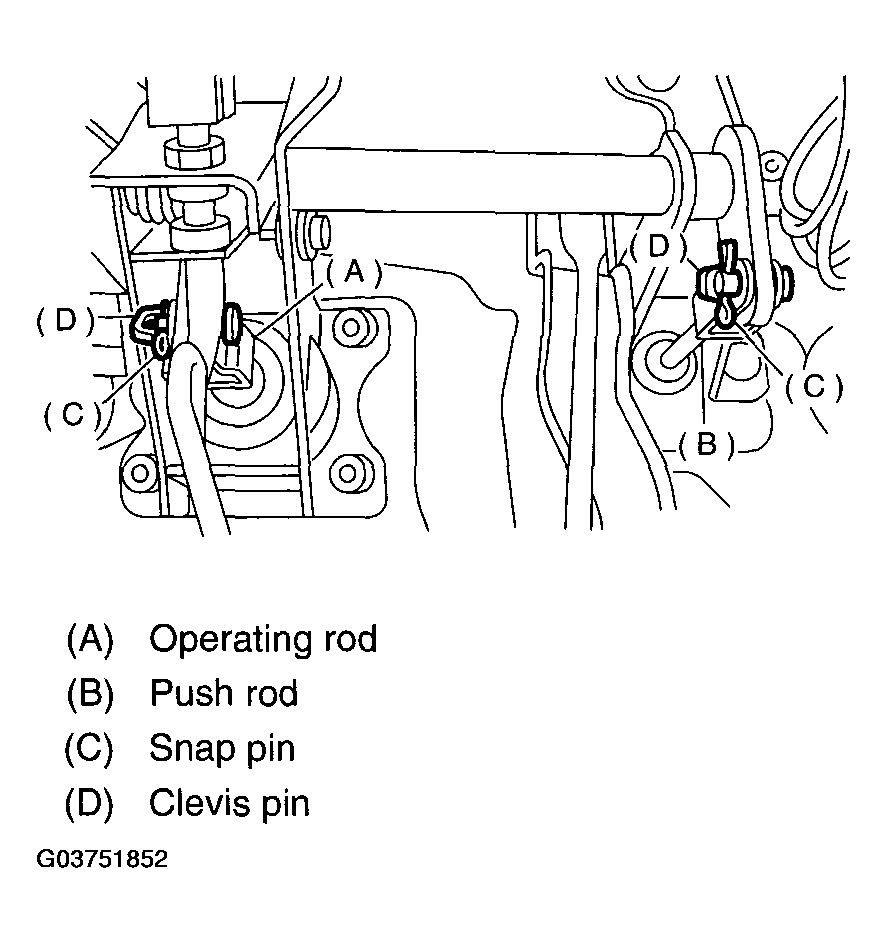

    Fig 1: Removing Clevis Pins Which Secure Lever To Push Rod And Operating Rod
    G03751852Courtesy of SUBARU OF AMERICA, INC.
  7. Remove nut which secures clutch master cylinder.

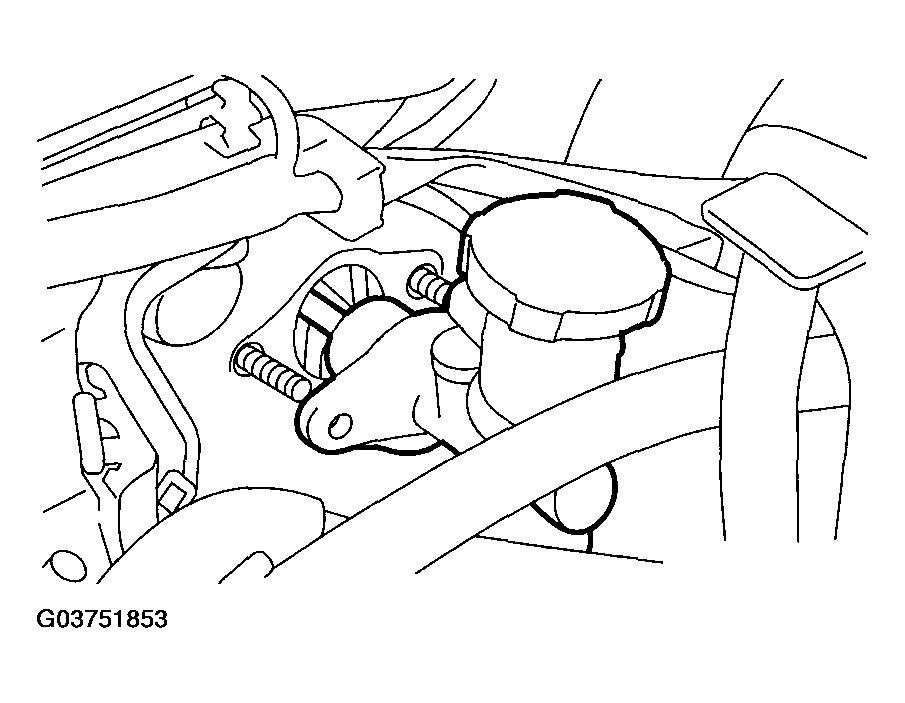

    Fig 2: Locating Clutch Master Cylinder Nut
    G03751853Courtesy of SUBARU OF AMERICA, INC.
  8. Remove bolts and nuts which secure brake and clutch pedals, and remove pedal assembly.
