Rear Link: Removal

Lift-up the vehicle, and then remove the rear wheels.
Remove the rear stabilizer. < Ref. to , REMOVAL , Rear Stabilizer. >
Using a transmission jack, support the rear arm horizontally.

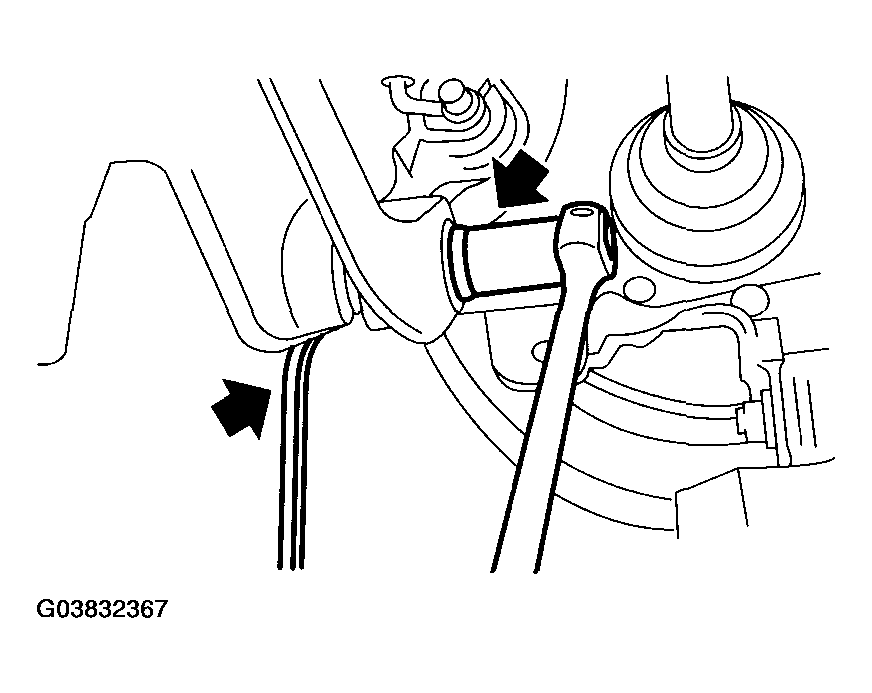

Fig 1: Supporting Rear Arm Horizontally
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the rear link to rear arm.

Fig 2: Removing Bolts Securing Rear Link To Rear Arm
Courtesy of SUBARU OF AMERICA, INC.
Put alignment marks on the rear link adjusting bolt and sub frame.
Remove the bolt which secure the rear link to sub frame, and then remove the rear link.
CAUTION: Loosen the nut with the bolt head secured when loosening the adjusting bolt.

Fig 3: Removing Rear Link

Courtesy of SUBARU OF AMERICA, INC.
