Section 9 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P1497 EGR Solenoid Valve Signal #3 Circuit Malfunction (High Input)
>>
Component Description
Component Description
WARNING:
This page is about a different variant/trim than selected.

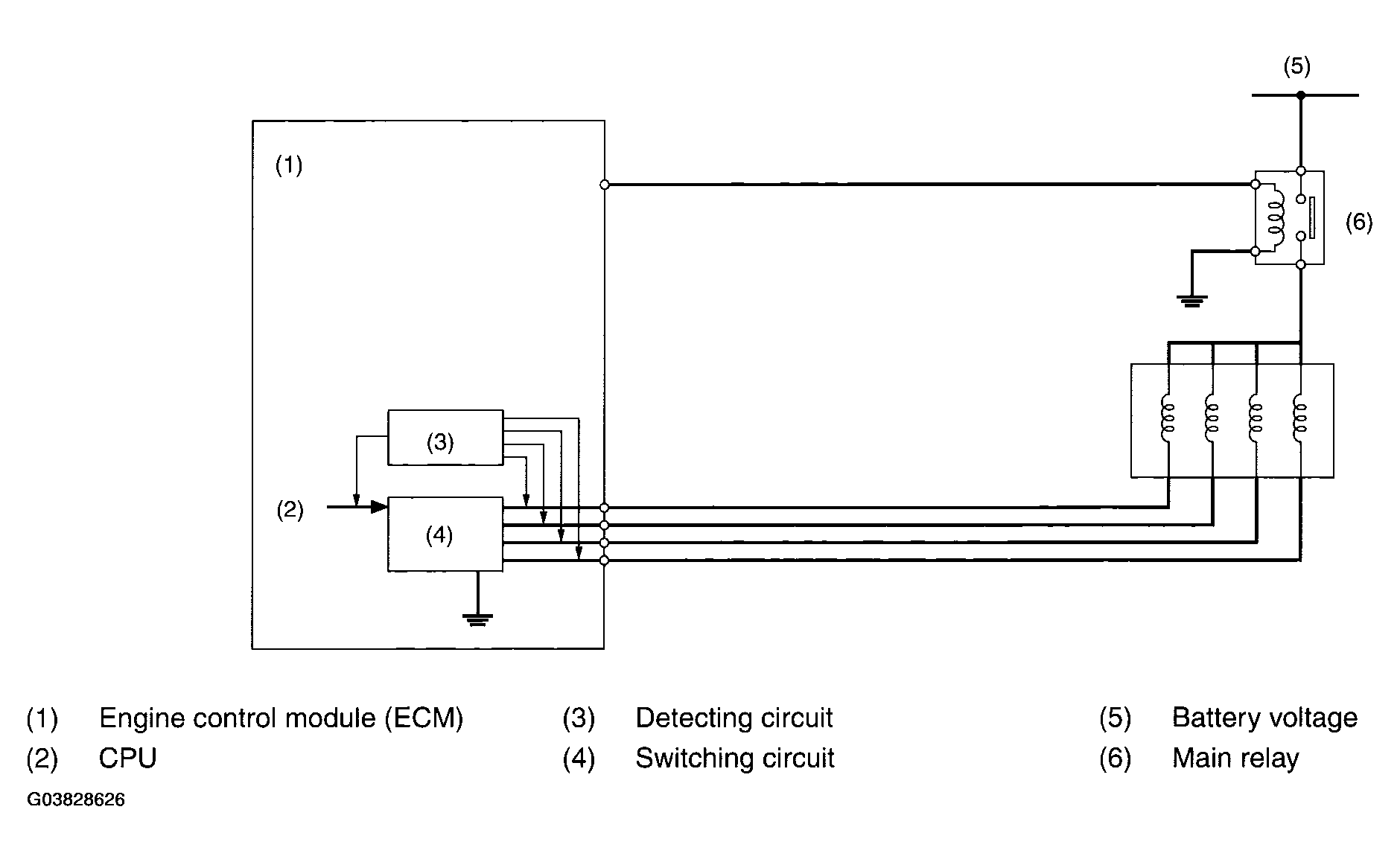

Fig 1: DTC P1497 EGR Solenoid Valve Signal #3 Circuit Malfunction - Description Diagram (High Input)
Courtesy of SUBARU OF AMERICA, INC.
