Purpose of Mode Z

WARNING: This page is about a different variant/trim than selected.

When performing the leakage diagnosis of EVAP system, CPC has to operate normally. Therefore, mode Z is used to diagnose the CPC open fixation.

If the CPC open fixation trouble is detected, the EVAP system leakage diagnosis is cancelled.

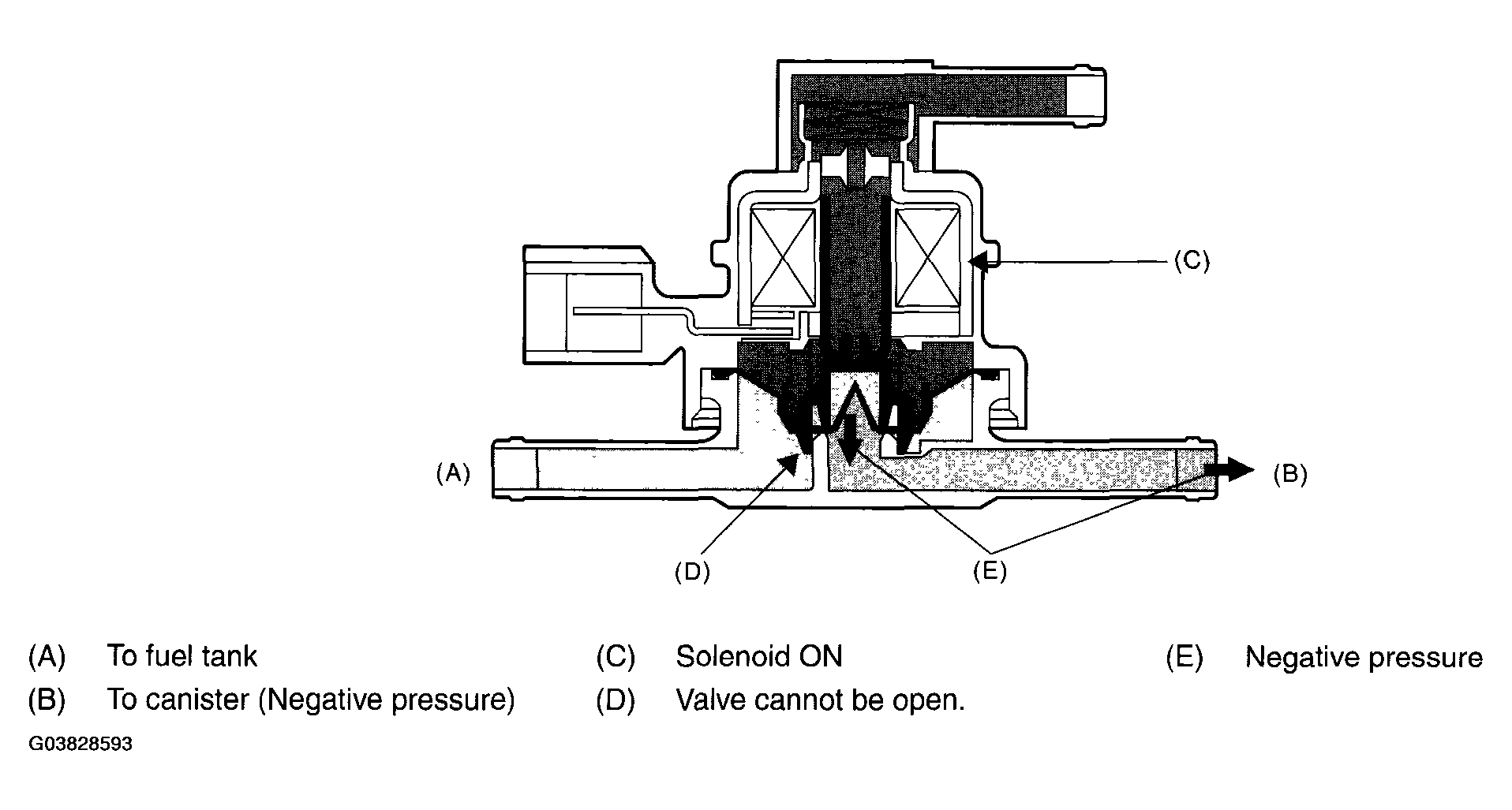

Fig 1: Identifying Leakage Diagnosis Of EVAP System Diagram

Courtesy of SUBARU OF AMERICA, INC.

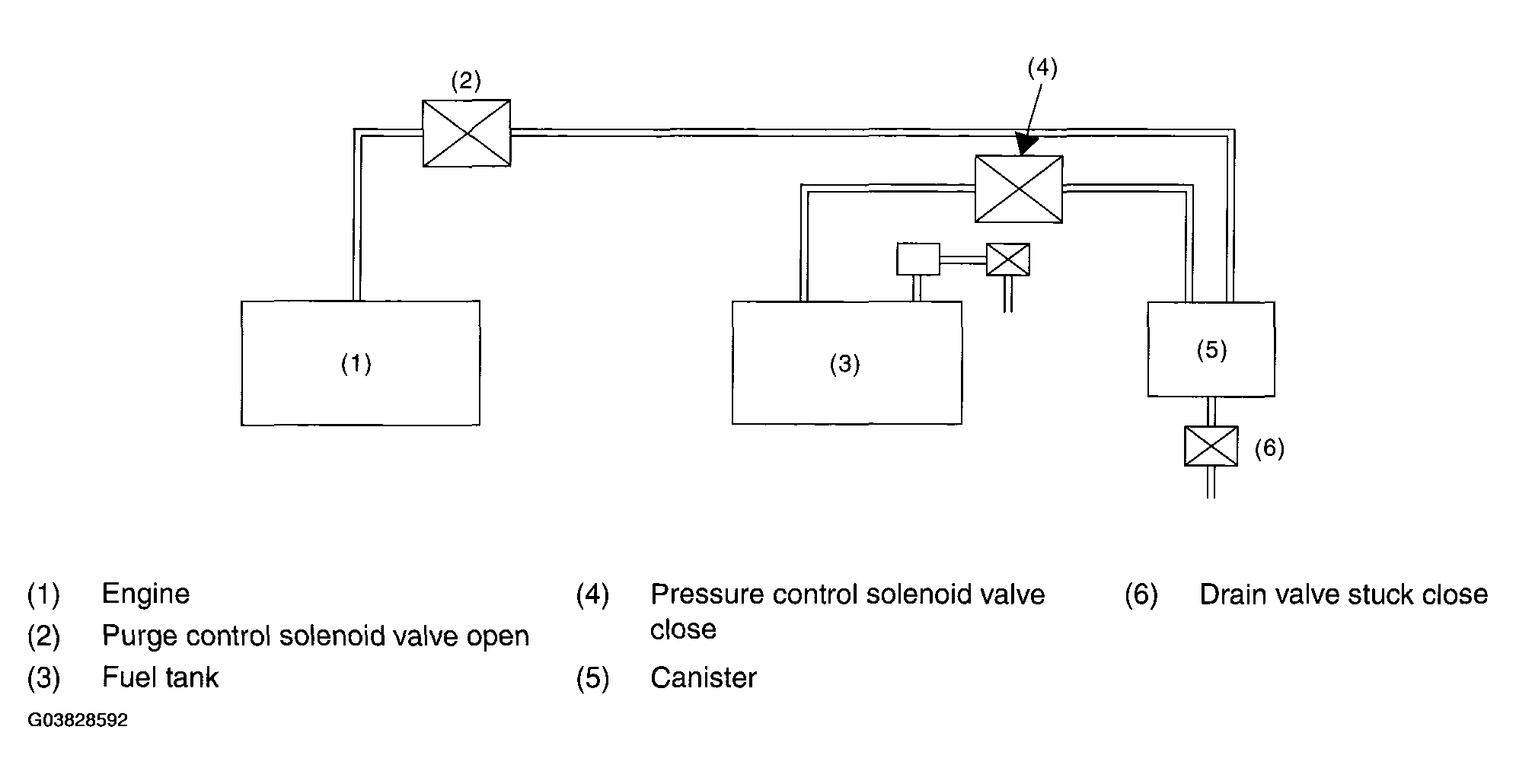

Fig 2: Identifying Leakage Diagnosis Of EVAP System

Courtesy of SUBARU OF AMERICA, INC.
