Purge Control Solenoid Valve Open Fixation

WARNING: This page is about a different variant/trim than selected.

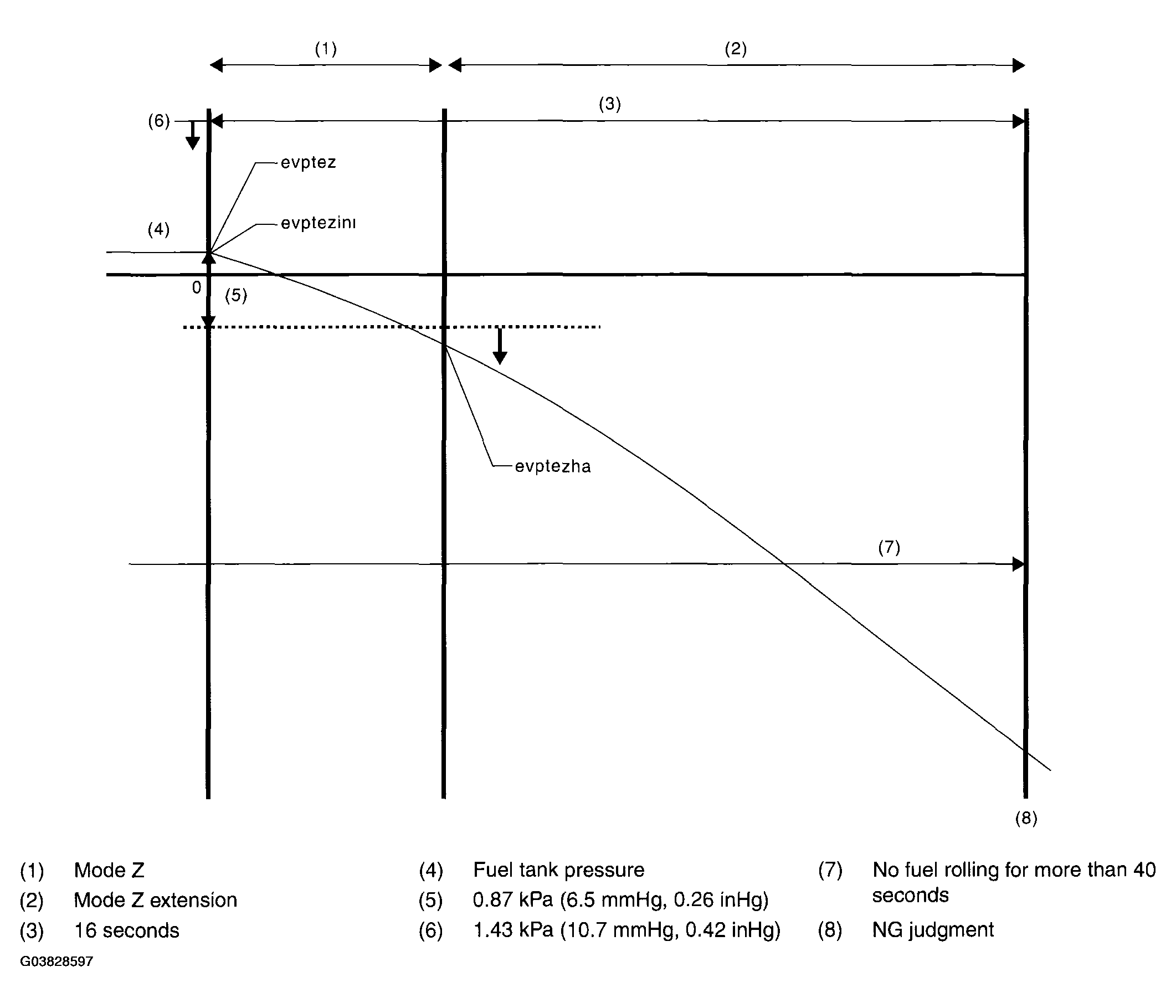

Fig 1: Purge Control Solenoid Valve Open Fixation Graph

Courtesy of SUBARU OF AMERICA, INC.

evptezini, evptez </= 1.43 kPa (10.7 mmHg, 0.42 inHg)
evptez - evptezha </= 0.87 kPa (6.5 mmHg, 0.26 inHg)
evptezini - evptezha </= 0.87 kPa (6.5 mmHg, 0.26 inHg)
No fuel rolling of above 2 lambda (0.53 US gal, 0.44 lmp gal) for more than 40 seconds.

All judge normal when these calculations are completed.
