Section 9 (Diagnostic Trouble Code (DTC) Detecting Criteria (H4SO))
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0442 Evaporative Emission Control System Leak Detected (Small Leak)
>>
Component Description
>>
Valve Operation and Air Flow
>>
When B < C (Solenoid OFF)
When B < C (Solenoid OFF)
WARNING:
This page is about a different variant/trim than selected.

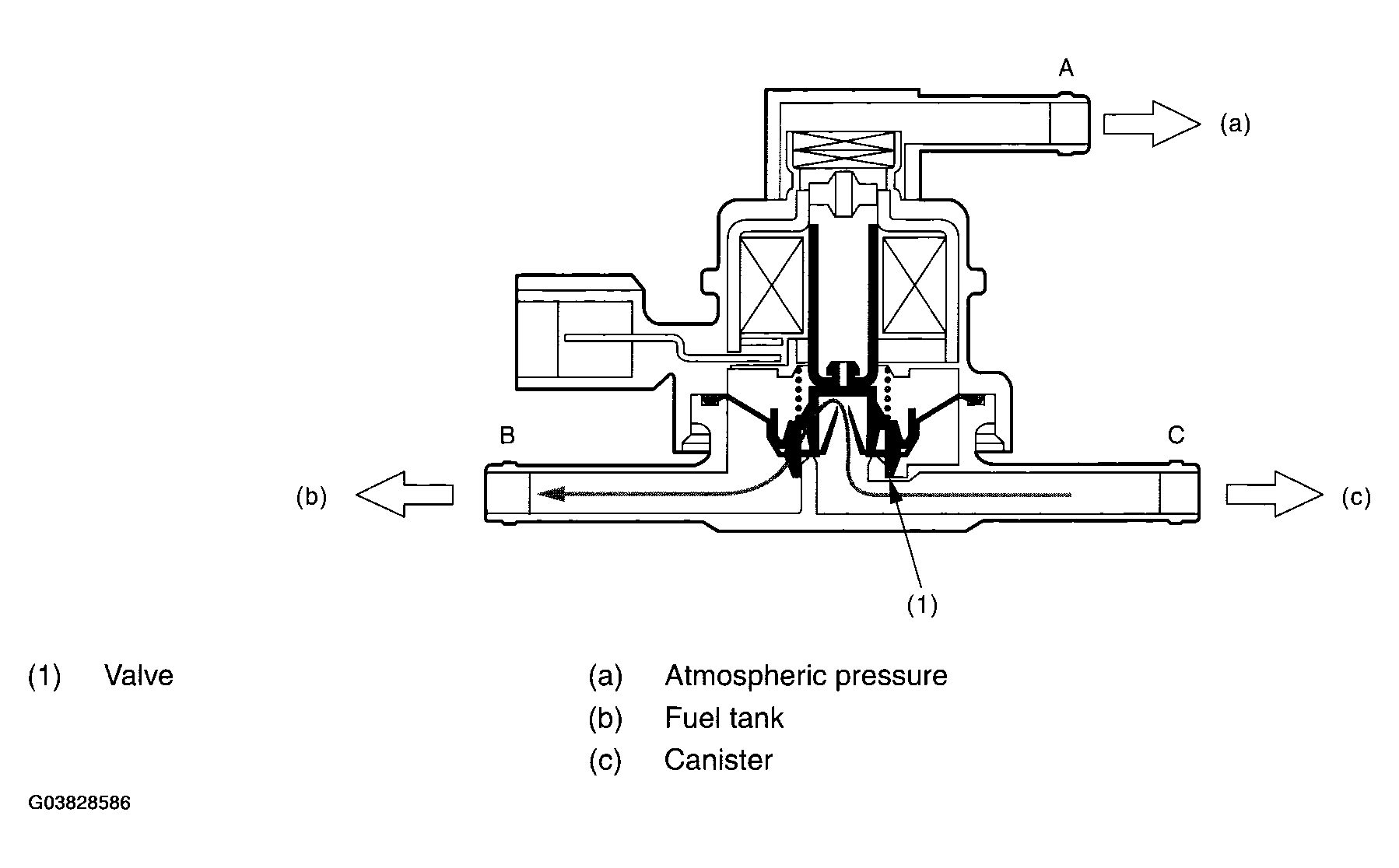

Fig 1: Identifying Valve Operation And Air Flow (When B < C (Solenoid OFF))
Courtesy of SUBARU OF AMERICA, INC.
