Diagnostic Method
WARNING: This page is about a different variant/trim than selected.

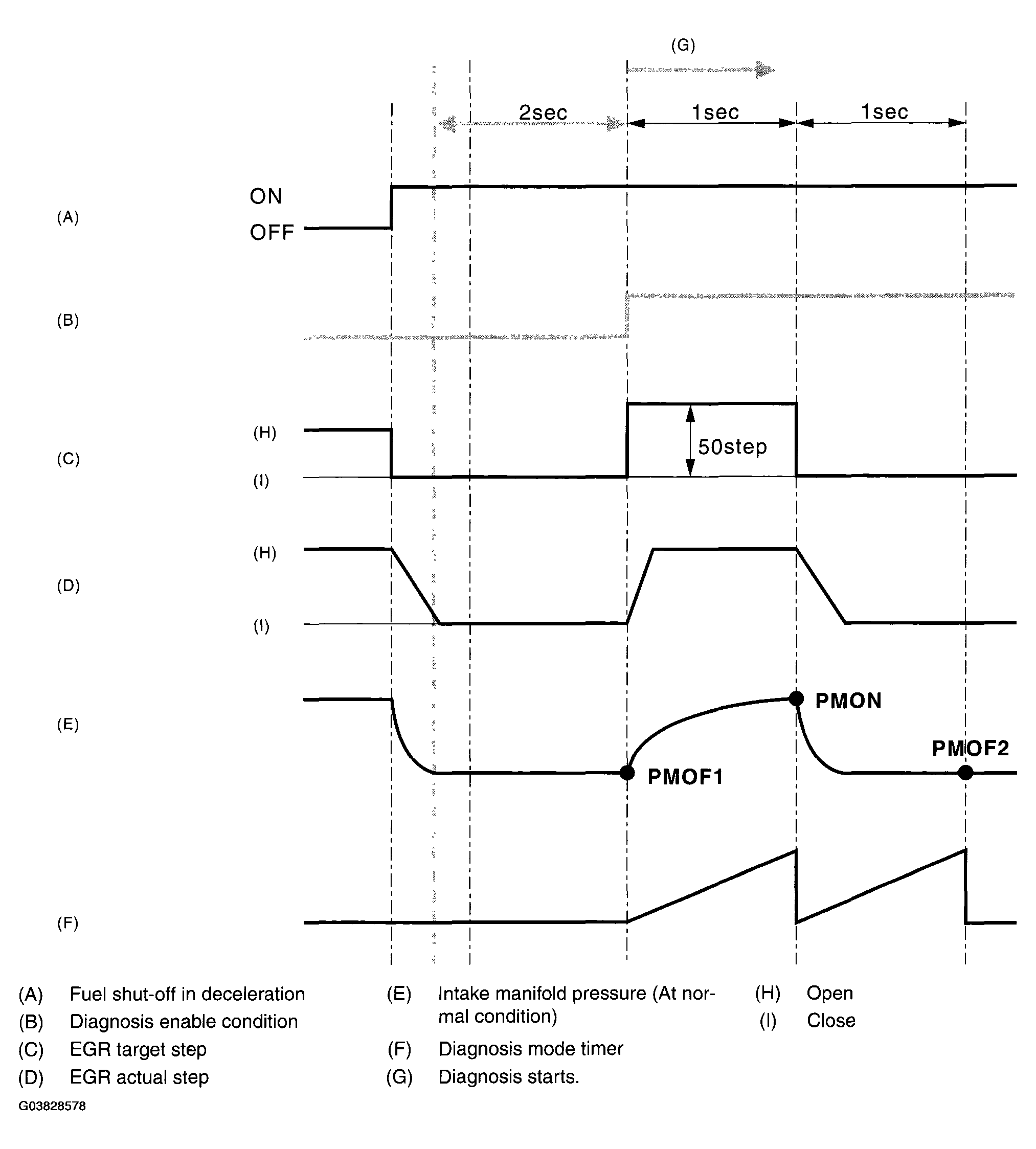

Measure the pressure in the following procedures when the enable conditions are completed, and then diagnosis by calculating the result.
- PMOF1 is equal to the intake manifold pressure at enable condition completed, and EGR target step is set to 50 steps (almost fully opened).
- PMON is equal to the intake manifold pressure in 1 second after EGR target step is set 50 steps (when enable conditions are completed), and EGR target step is set to 0 step.
- PMOF2 is equal to the intake manifold pressure in 1 second after EGR target step is set to 0 step (in 2 seconds after enable conditions are completed).
Calculate the judged value using the following formula.
Judged value = [PMON - (PMOF1 + PMOF2)/2]
Judged value < 18.63 mmHg, 2.48 kPa (18.63 mmHg, 0.733 inHg) --> NG
Judged value >/= 2.48 kPa (18.63 mmHg, 0.733 inHg) --> OK
Time Needed for Diagnosis: Once
Malfunction Indicator Light Illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
