180° Interval Difference Method
WARNING: This page is about a different variant/trim than selected.

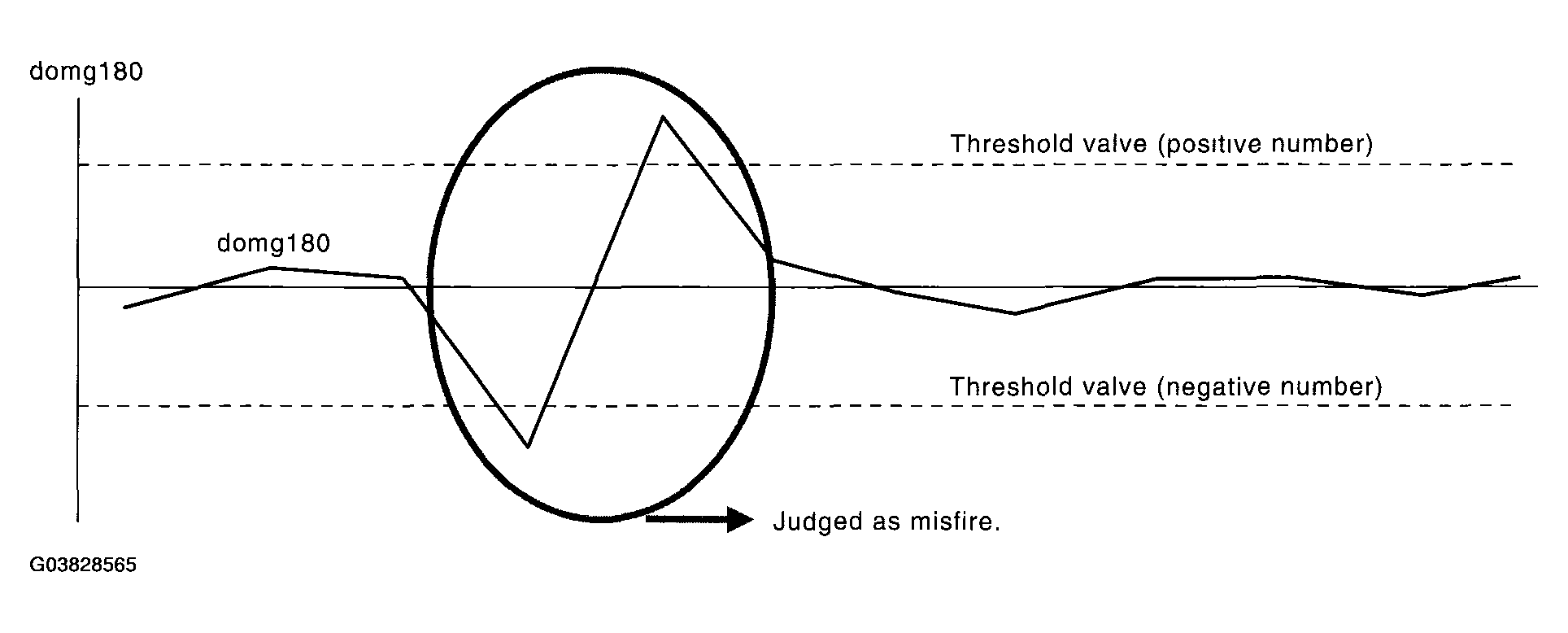

Diagnosis value domg 180 = (omg -1 omg 0) - (omg 7 - omg 1 )/6
Judge misfire occurs in the following cases.
- domg 180 > judgment value of positive side
- domg 180 </= judgment value of negative side
(judgment value before 180°CA)
