Section 8 (Engine Controls - Engine (Diagnostics) (H4SO)): General Description: Preparation Tool

WARNING: This page is about a different variant/trim than selected.

PREPARATION TOOL SPECIFICATIONS

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	24082AA260	CARTRIDGE	Troubleshooting for electrical system.
Fig 2	22771AA030	SUBARU SELECT MONITOR KIT	Troubleshooting for electrical system.

Fig 1: Identifying Special Tool ST24082AA260

Courtesy of SUBARU OF AMERICA, INC.

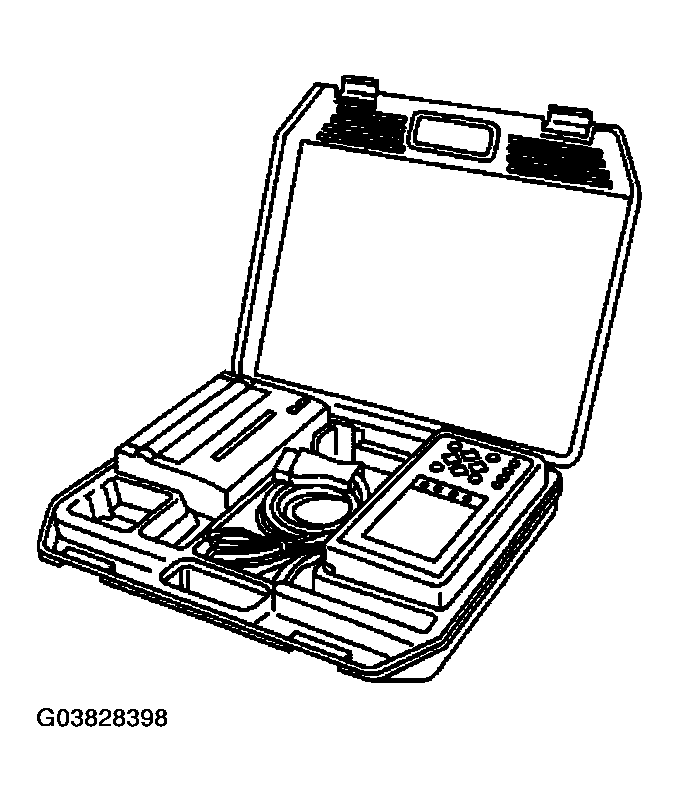

Fig 2: Identifying Special Tool ST22771AA030

Courtesy of SUBARU OF AMERICA, INC.
