Engine Ground

WARNING: This page is about a different variant/trim than selected.

Make sure the engine grounding terminal is properly connected to engine.

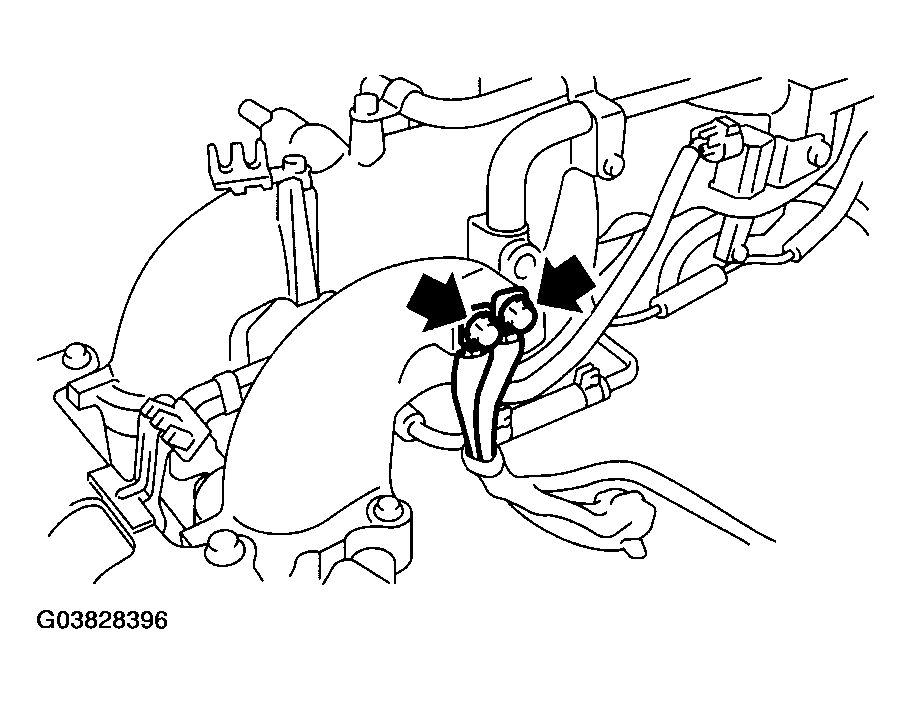

Fig 1: Locating Engine Grounding Terminal
G03828396Courtesy of SUBARU OF AMERICA, INC.
