Solenoid valve, actuator, emission control system parts and ignition system parts

WARNING: This page is about a different variant/trim than selected.

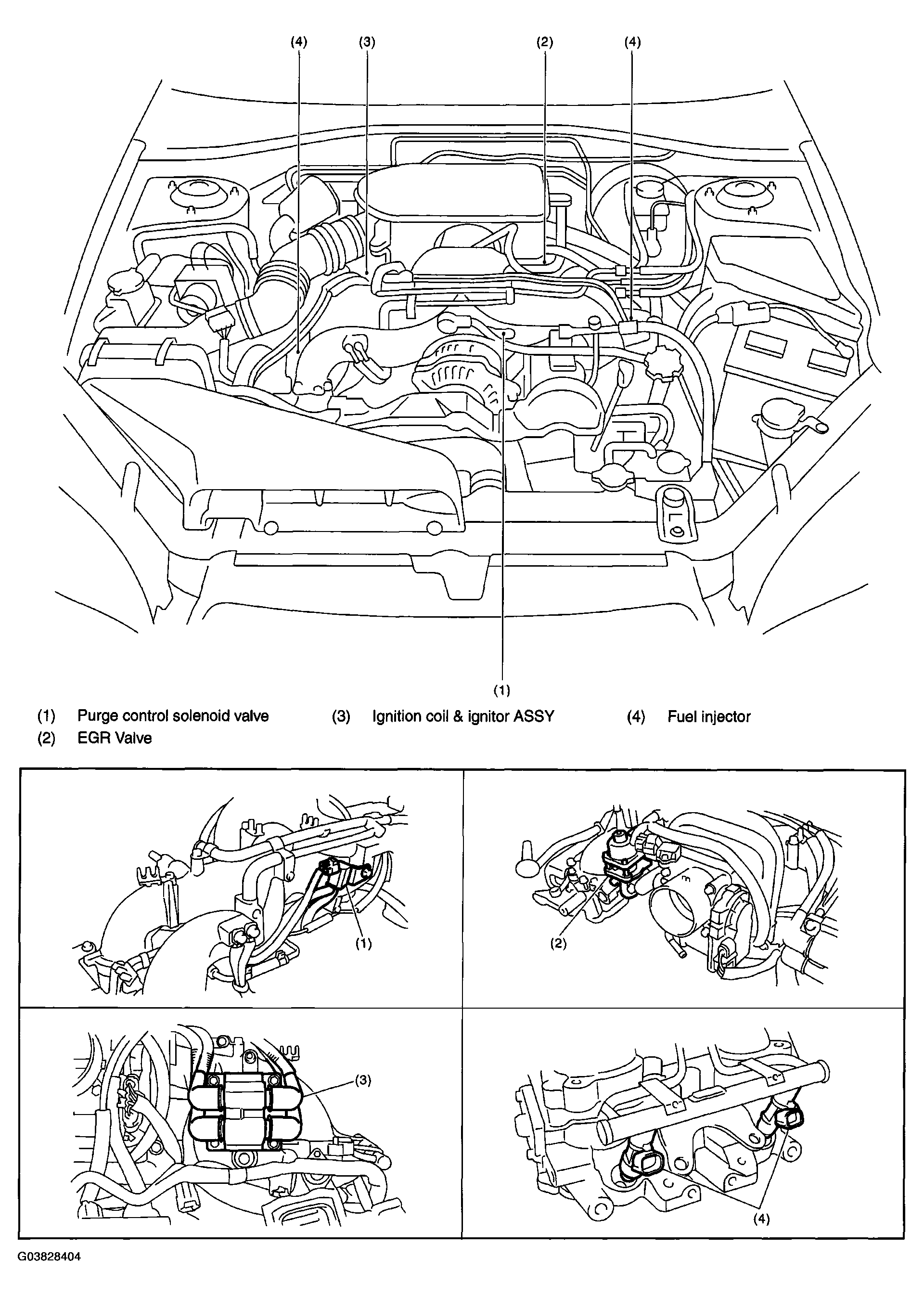

Fig 1: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.
