DTC P1420 Fuel Tank Pressure Control Sol. Valve Circuit High

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
GENERAL DESCRIPTION < Ref. to DTC P1420 FUEL TANK PRESSURE CONTROL SOL. VALVE CIRCUIT HIGH , Diagnostic Trouble Code (DTC) Detecting Criteria. >

CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE < Ref. to , OPERATION , Clear Memory Mode.> and INSPECTION MODE < Ref. to , PROCEDURE , Inspection Mode.>.

WIRING DIAGRAM:

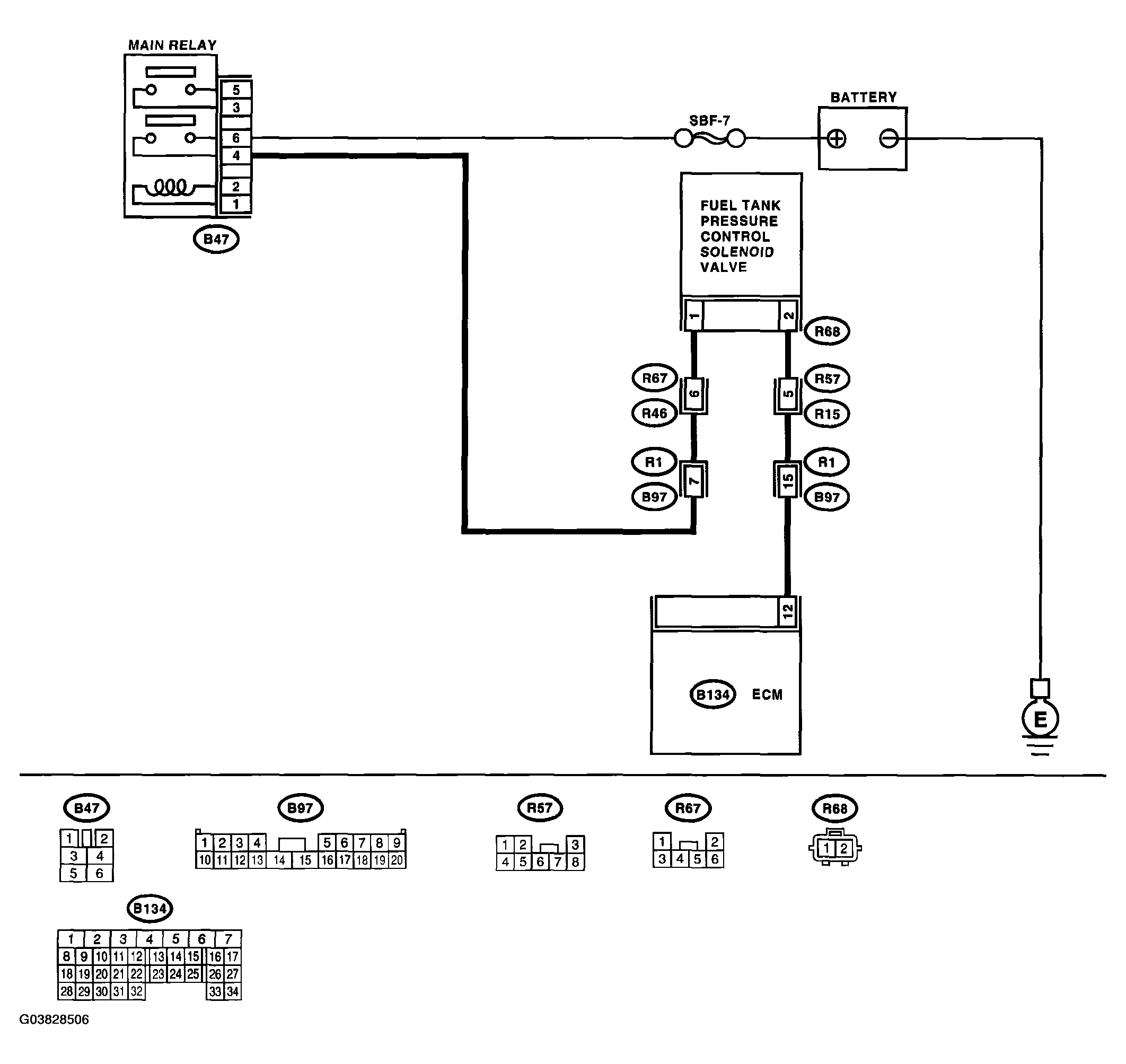

Fig 1: DTC P1420 Fuel Tank Pressure Control Solenoid Valve Circuit High

Courtesy of SUBARU OF AMERICA, INC.

DTC P1420 FUEL TANK PRESSURE CONTROL SOL. VALVE CIRCUIT HIGH DIAGNOSIS

Step	Check	Yes	No
1. CHECK INPUT SIGNAL FOR ECM. Turn ignition switch to OFF. Connect the test mode connector at the lower portion of instrument panel (on the driver's side). Turn ignition switch to ON. While operating the fuel tank pressure control solenoid valve, measure voltage between ECM and chassis ground. NOTE: Fuel tank pressure control solenoid valve operation can be executed using Subaru Select Monitor. For the procedure, refer to "Compulsory Valve Operation Check Mode". < Ref. to , COMPULSORY VALVE OPERATION CHECK MODE . > Connector & Terminal (B134) No. 12 (+) - Chassis ground (-):	Is the voltage 0 - 10 V?	Go to step 2.	The malfunction indicator light may light up, however, the circuit is returned to the normal status at the moment. In this case, repair poor contact in ECM connector.
2. CHECK INPUT SIGNAL FOR ECM. Turn ignition switch to ON. Measure the voltage between ECM and chassis ground. Connector & terminal (B134) No. 12 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Go to step 4 .	Go to step 3 .
3. CHECK FOR POOR CONTACT. Check for poor contact in ECM connector.	Is there poor contact in ECM connector?	Repair poor contact in ECM connector.	Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
4. CHECK HARNESS BETWEEN FUEL TANK PRESSURE CONTROL SOLENOID VALVE AND ECM CONNECTOR. Turn ignition switch to OFF. Disconnect the connector from fuel tank pressure control solenoid valve. Turn ignition switch to ON. Measure the voltage between ECM and chassis ground. Connector & terminal (B134) No. 12 (+) - Chassis ground (-):	Is the voltage more than 10 V?	Repair short circuit to battery in harness between ECM and fuel tank pressure control solenoid valve connector. After repair, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >	Go to step 5.
5. CHECK FUEL TANK PRESSURE CONTROL SOLENOID VALVE. Turn ignition switch to OFF. Measure the resistance between fuel tank pressure control solenoid valve terminals. Terminals No. 1 - No. 2:	Is the resistance less than 1 Ω?	Replace the fuel tank pressure control solenoid valve < Ref. to PRESSURE CONTROL SOLENOID VALVE .> and the ECM < Ref. to ENGINE CONTROL MODULE (ECM) >.	Go to step 6.
6. CHECK FOR POOR CONTACT. Check for poor contact in ECM connector.	Is there poor contact in ECM connector?	Repair poor contact in ECM connector.	Replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
