DTC P0512 Starter Request Circuit

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Two consecutive driving cycles with fault
GENERAL DESCRIPTION < Ref. to DTC P0512 STARTER REQUEST CIRCUIT , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Failure of engine to start

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode.> and Inspection Mode < Ref. to , PROCEDURE , Inspection Mode.>.

WIRING DIAGRAM:

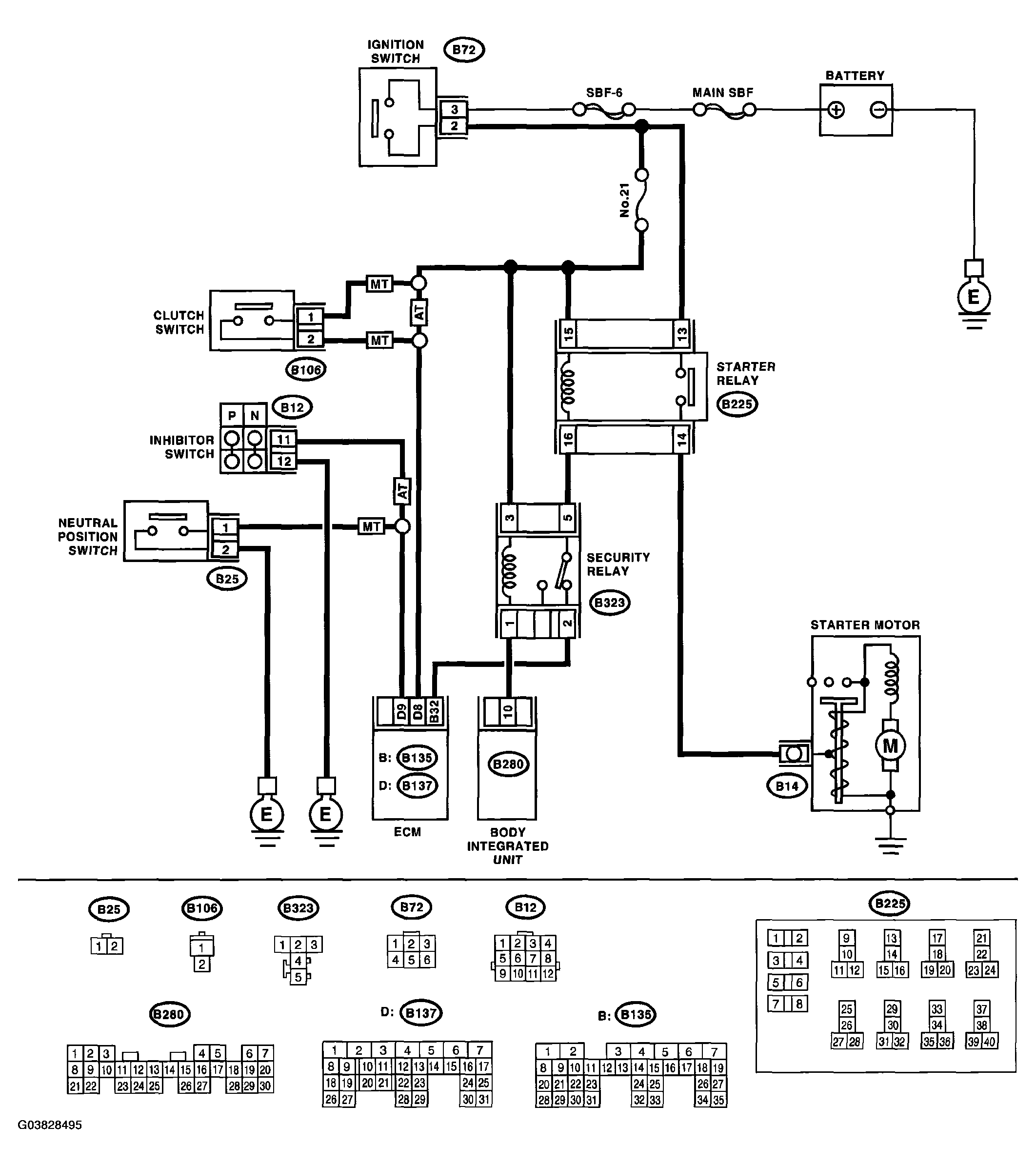

Fig 1: DTC P0512 Starter Request Circuit

Courtesy of SUBARU OF AMERICA, INC.

DTC P0512 STARTER REQUEST CIRCUIT DIAGNOSIS

Step	Check	Yes	No
1. CHECK OPERATION OF STARTER MOTOR. Turn the ignition switch to ON. NOTE: Place the inhibitor switch in each position. (AT model) Depress or release the clutch pedal. (MT model) Check that the security alarm does not beep.	Dose the starter motor operate?	Repair battery short circuit in starter motor circuit.	Check starter motor circuit. < Ref. to , STARTER MOTOR CIRCUIT , Diagnostics for Engine Starting Failure. >
