Ignition Coil and Ignitor Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

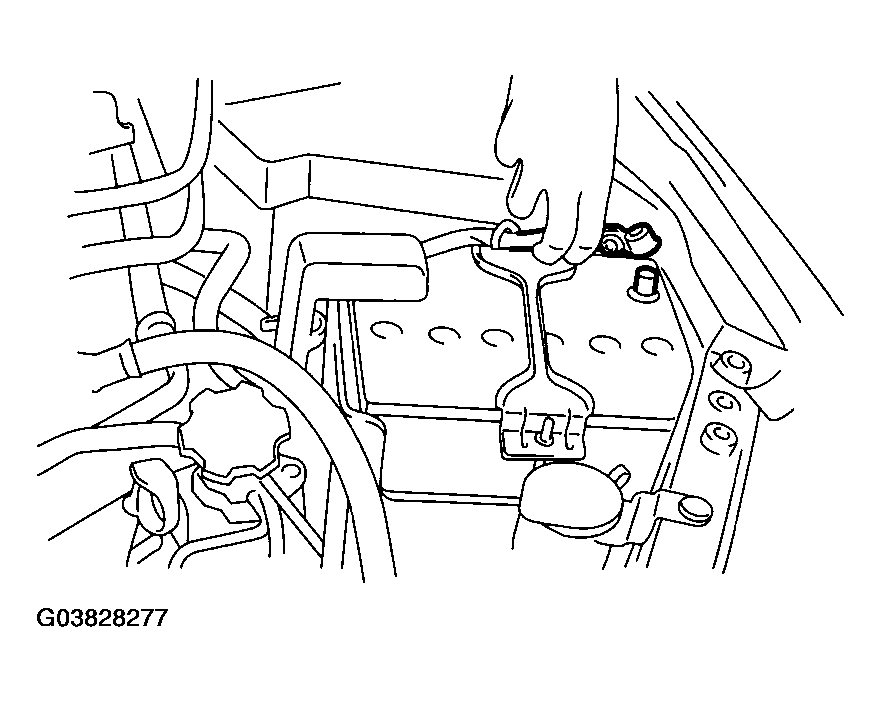

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the spark plug cords from ignition coil and ignitor assembly.
- U5 model

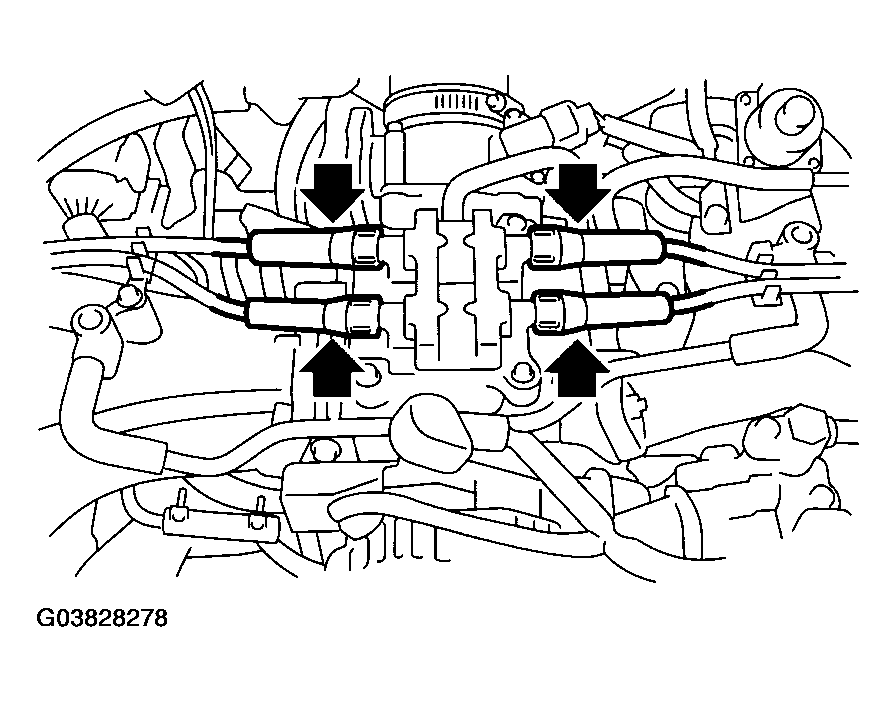

  Fig 2: Disconnecting Spark Plug Cords From Ignition Coil And Ignitor Assembly (U5 Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Except for U5 model
Fig 3: Disconnecting Spark Plug Cords From Ignition Coil And Ignitor Assembly (Except For U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from ignition coil and ignitor assembly.
Remove the bolt which secures the ignition coil and ignitor assembly to intake manifold.

U5 model

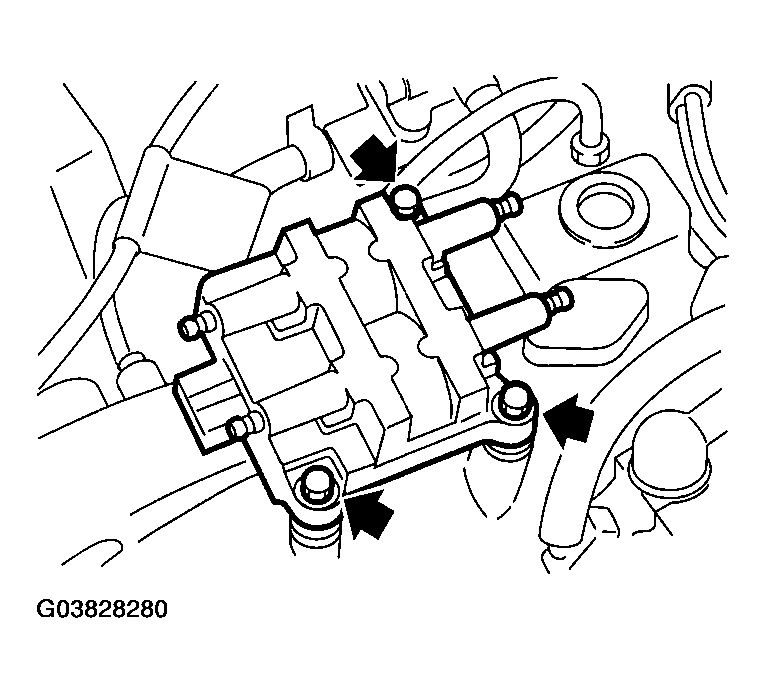

Fig 4: Removing bolt (U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
Except for U5 model

Fig 5: Removing bolt (Except For U5 Model)
Courtesy of SUBARU OF AMERICA, INC.
