Water Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Install the water pump onto cylinder block (LH).
NOTE:
- Use a new gasket.
- When installing the water pump, tighten the bolts in two stages in alphabetical sequence as shown in Fig 1 .
Tightening torque:

First: 12 N.m (1.2 kgf-m, 8.9 ft-lb)

Second: 12 N.m (1.2kgf-m, 8.9 ft-lb)

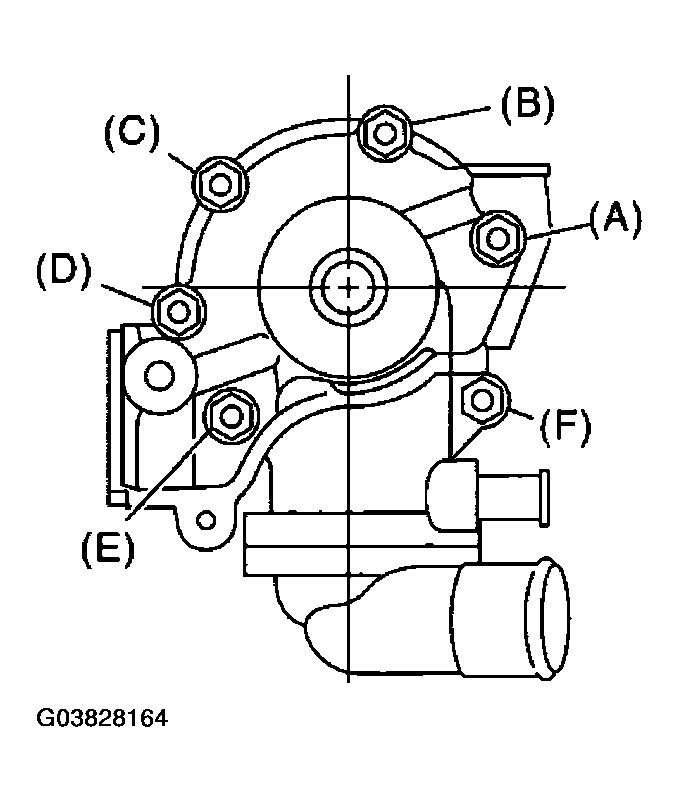

Fig 1: Installing Water Pump Onto Cylinder Block (Lh)
Courtesy of SUBARU OF AMERICA, INC.
Connect the hose to the water pump.
Install the tensioner bracket.
Tightening torque: 25 N.m (2.5kgf-m, 18 ft-lb)

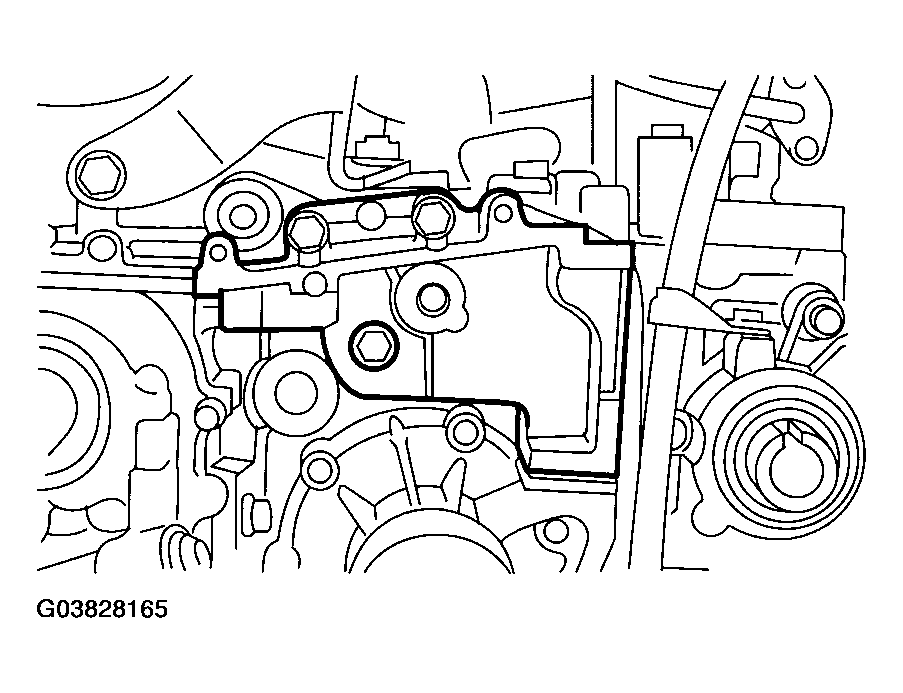

Fig 2: Installing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the belt cover No. 2 (LH).
Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)

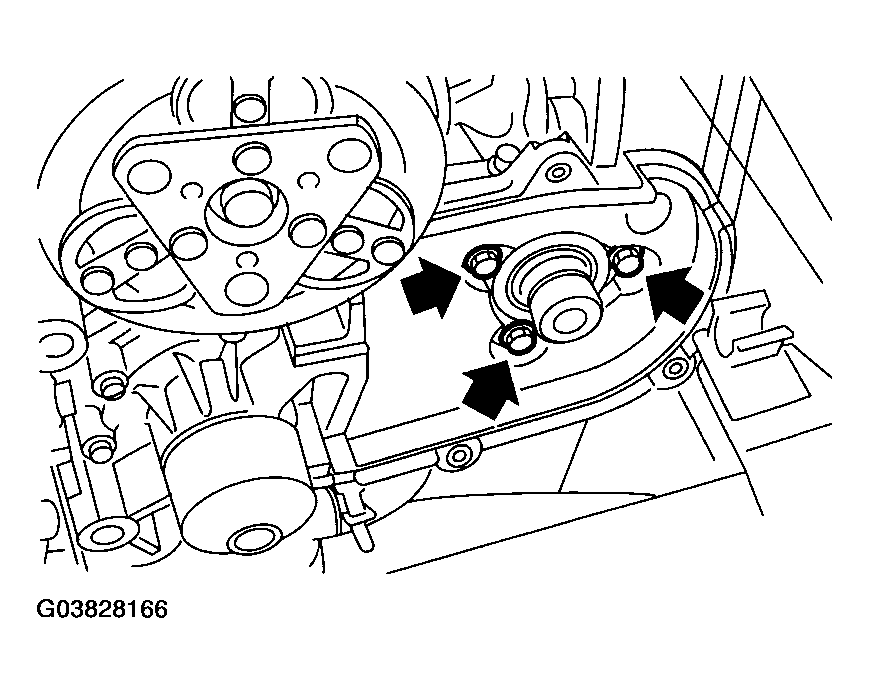

Fig 3: Installing Belt Cover No. 2 (LH)
Courtesy of SUBARU OF AMERICA, INC.
Install the cam sprocket (LH) using ST.
ST 18231AA010 CAM SPROCKET WRENCH

NOTE: CAM SPROCKET WRENCH (499207100) can also be used.

Tightening torque: 78 N.m(8.0kgf-m, 57.9 ft-lb)

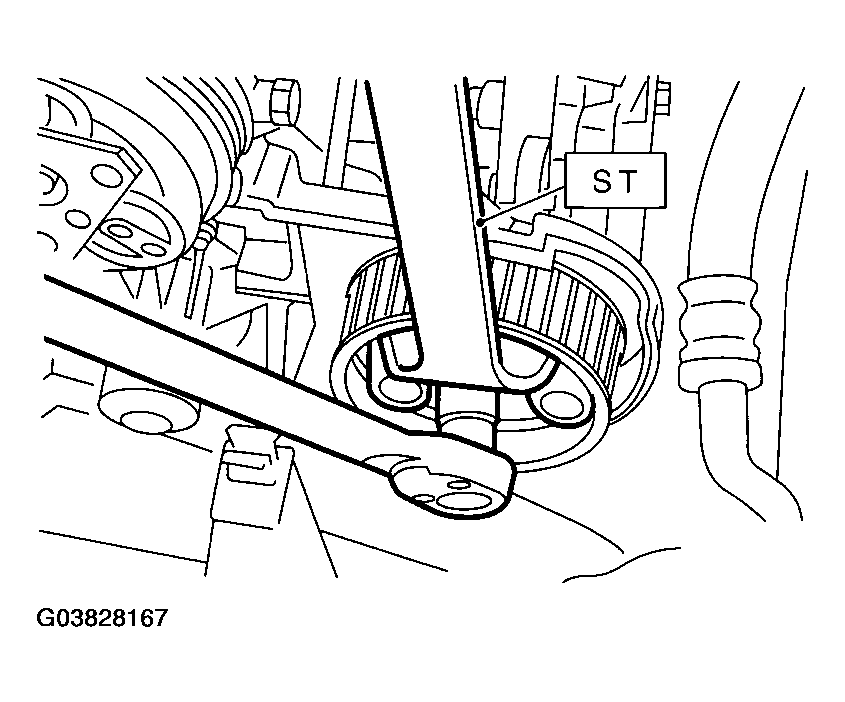

Fig 4: Installing Cam Sprocket (LH) Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Install the belt idler No. 2.
Tightening torque: 39 N.m (4.0kgf-m, 28.9 ft-lb)

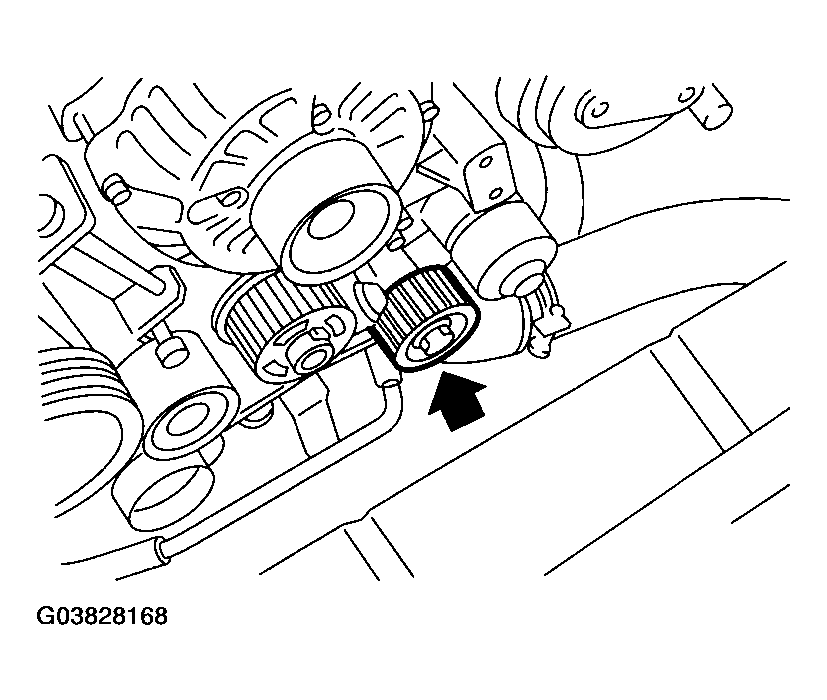

Fig 5: Installing Belt Idler No. 2
Courtesy of SUBARU OF AMERICA, INC.
Install the automatic belt tension adjuster which tension rod is held with pin. < Ref. to AUTOMATIC BELT TENSION ADJUSTER ASSEMBLY AND BELT IDLER , INSTALLATION, Timing Belt. >
Install the timing belt. < Ref. to INSTALLATION , Timing Belt. >
Install the V-belts. < Ref. to INSTALLATION , V-belt. >
Install the radiator. < Ref. to INSTALLATION , Radiator. >
