Radiator Sub Fan and Fan Motor: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.

Tightening torque: 7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

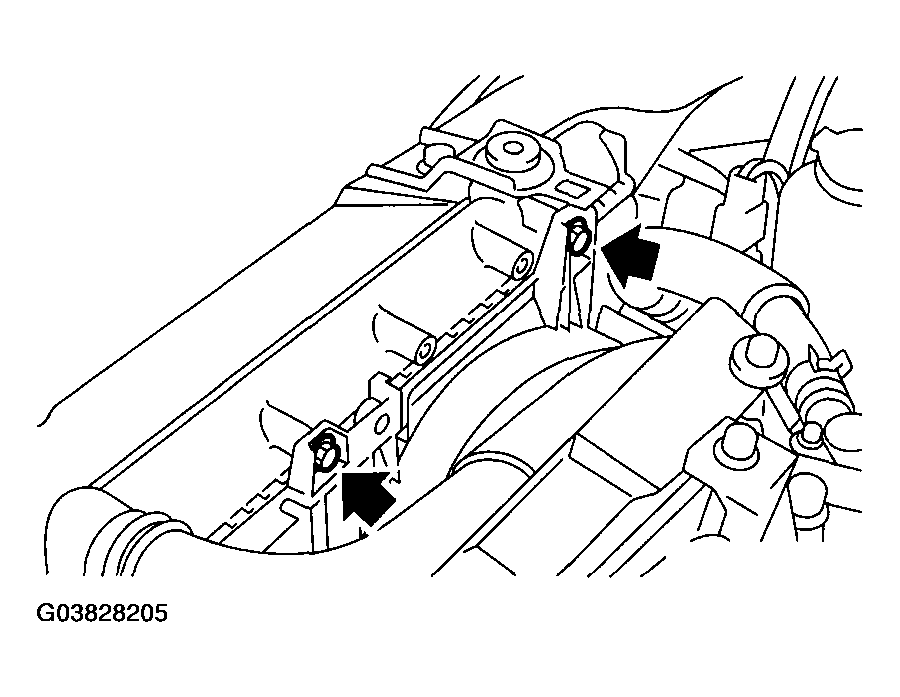

Fig 1: Installing Bolts To Radiator Sub Fan Shroud To Radiator

Courtesy of SUBARU OF AMERICA, INC.
