Radiator Sub Fan and Fan Motor: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the clip which holds the fan motor connector onto shroud.
Remove the nut which holds fan onto the fan motor and shroud assembly.

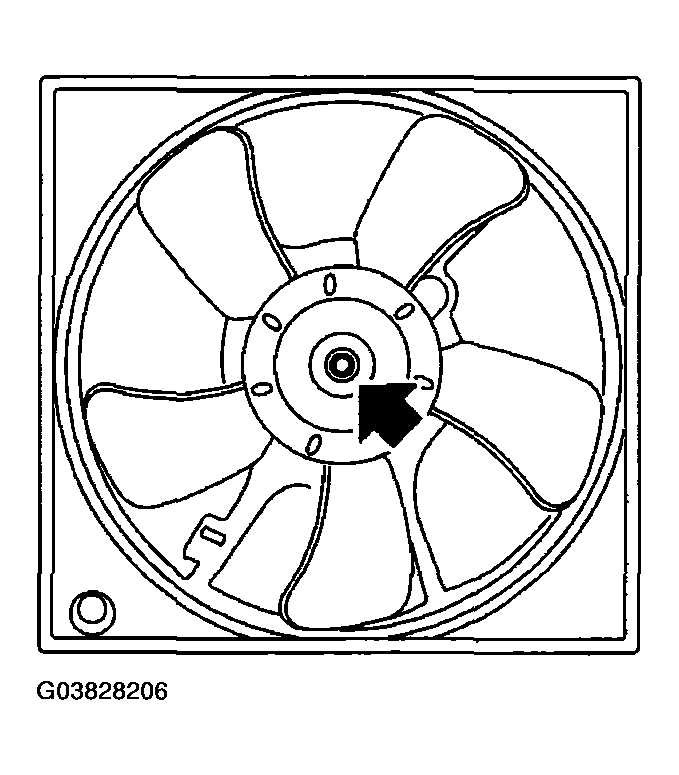

Fig 1: Removing Nut From Fan Onto Fan Motor And Shroud Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install fan motor onto the shroud.

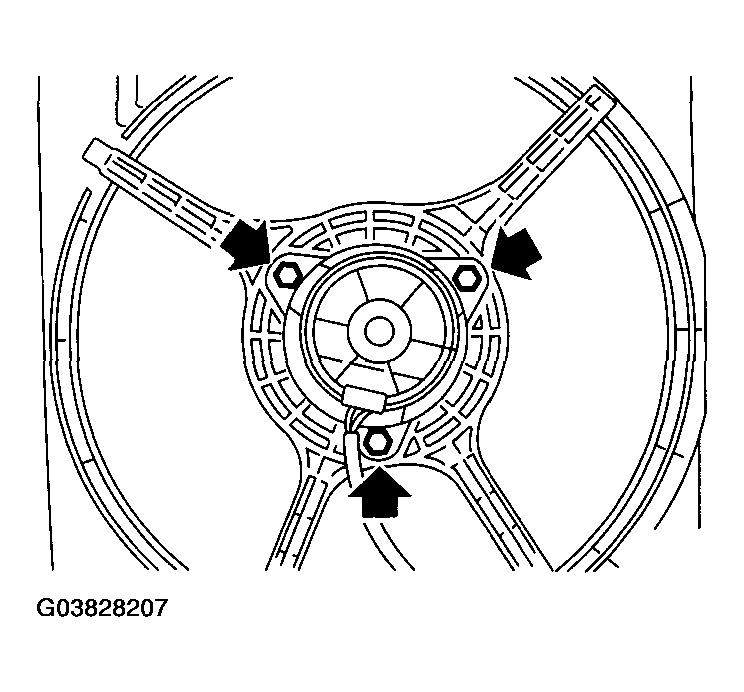

Fig 2: Removing Bolts From Fan Motor Onto Shroud
Courtesy of SUBARU OF AMERICA, INC.
